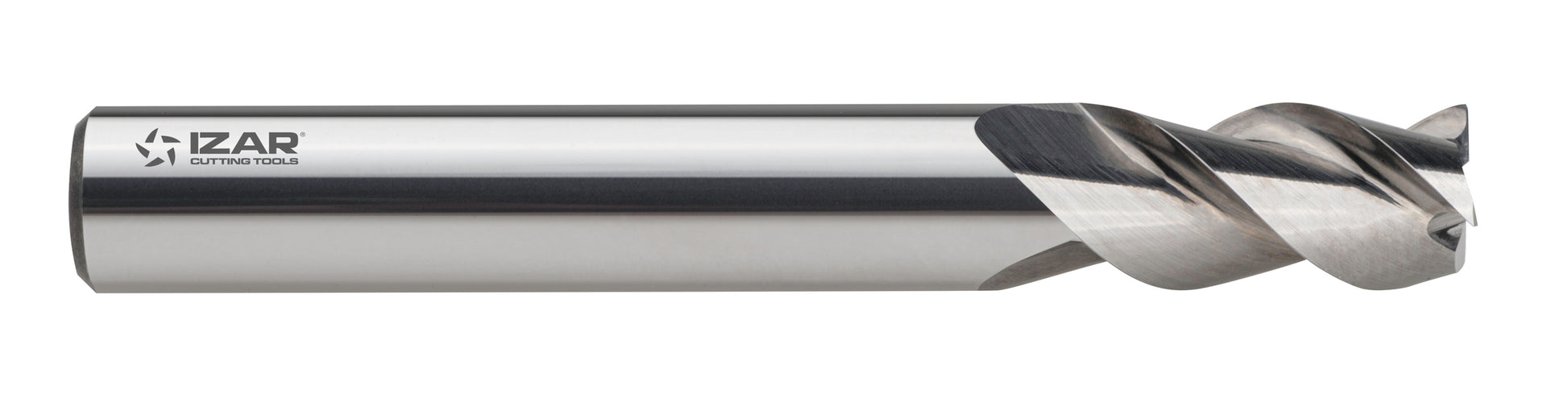

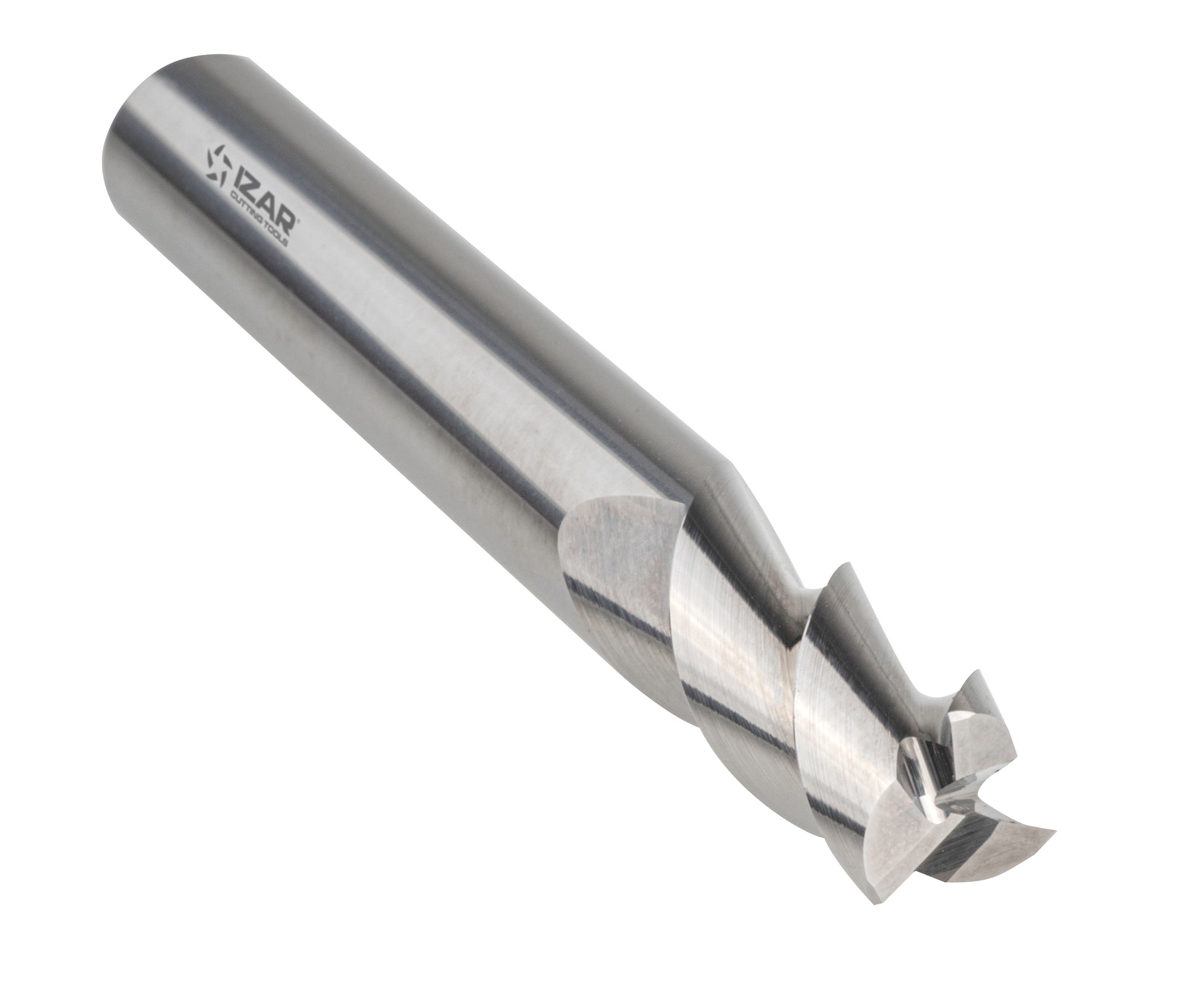

Izar 9439 — Mirror-Polished Aluminium Endmill (3-Flute, 45° Helix, DIN 6528 N)

The Izar 9439 is a high-performance solid carb­ide endmill, engineered from micro-grain carbide with a mirror-polished finish, crafted exclusively for aluminium and non-ferrous machining. Featuring 3 flutes and a 45° helix, this cutter offers superior chip evacuation, reduced build-up, and unmatched surface finishes even under aggressive spindle speeds.

Geometry & Benefits

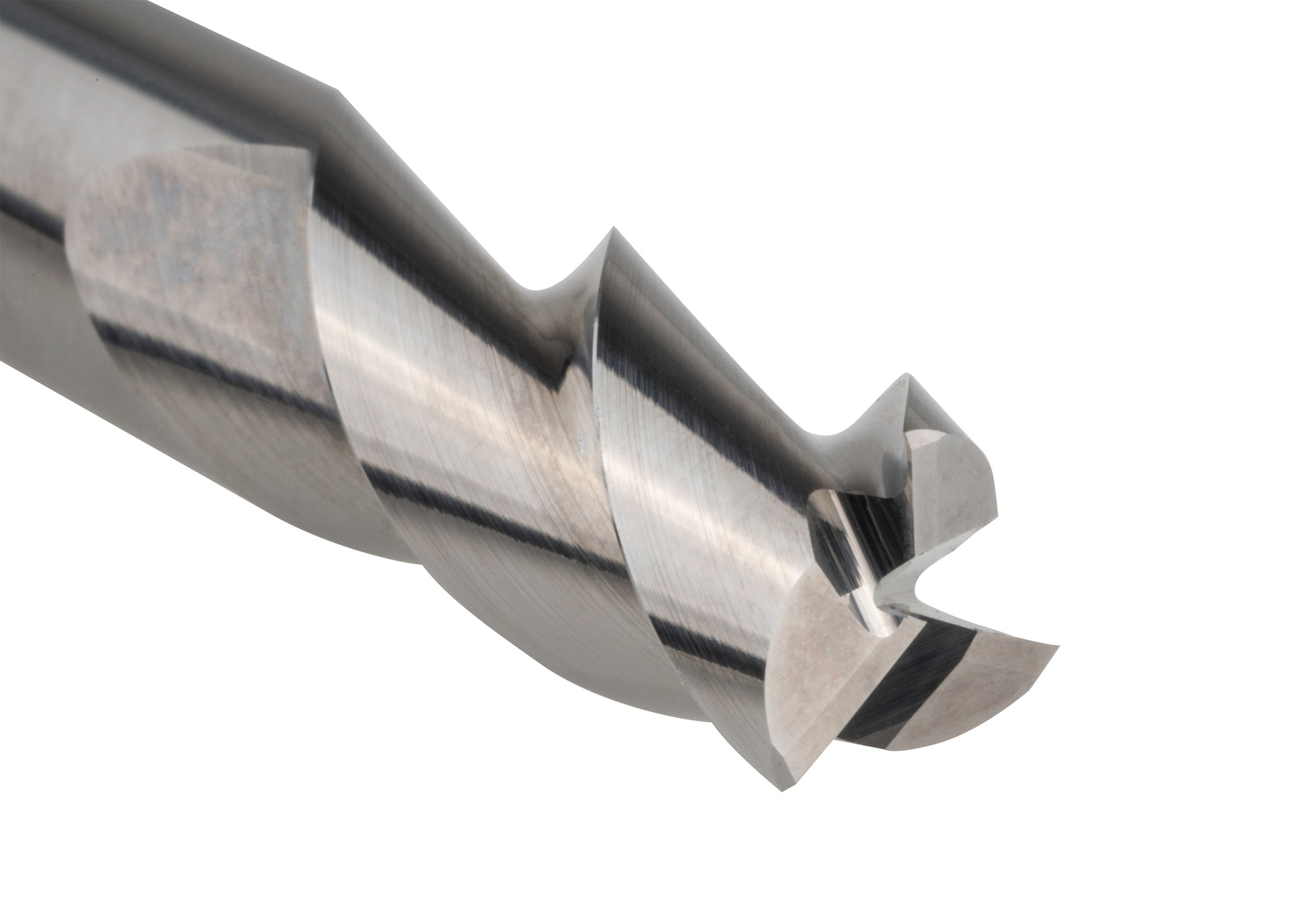

• Mirror-polished flutes: Minimal surface adhesion and smoother chip flow, preventing built-up edge and improving finish quality.

• 3-flute geometry: Ideal for soft, ductile materials—enhances rigidity while maximizing flute space for chip clearance.

• 45° helix angle: Cuts smoothly with reduced cutting forces and cleaner surfaces.

• Micro-grain carbide: Provides strength and wear resistance required for high-speed aluminium work.

• DIN 6528 N compliance: Ensures reliable, repeatable performance in production environments.

Applications & Advantageous Uses

• High-speed slotting, profiling, and finishing in aluminium alloys (non-alloyed and Al-Mg Si up to >10%).

• Non-ferrous materials: Ideal for copper, brass, bronze, and magnesium alloys.

• Precision work: Molds, fixtures, and parts where surface quality and productivity are paramount.

• Production environments: Particularly in CNC setups with high spindle speeds and frequent tool changes.

Feed & Speed Reference (Ø8 mm Example)

6mm, 10mm Cut length, 57mm OAL, 6mm Shank

8mm, 16mm Cut length, 63mm OAL, 8mm Shank

10mm, 19mm Cut length, 72mm OAL, 10mm Shank

12mm, 22mm Cut length, 83mm OAL, 12mm Shank

16mm, 26mm Cut length, 92mm OAL, 16mm Shank
