9437 - Izar Aluminium 45 Degree 3 Flute Polished Endmill

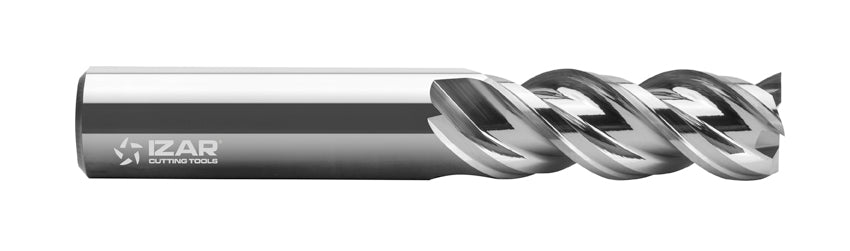

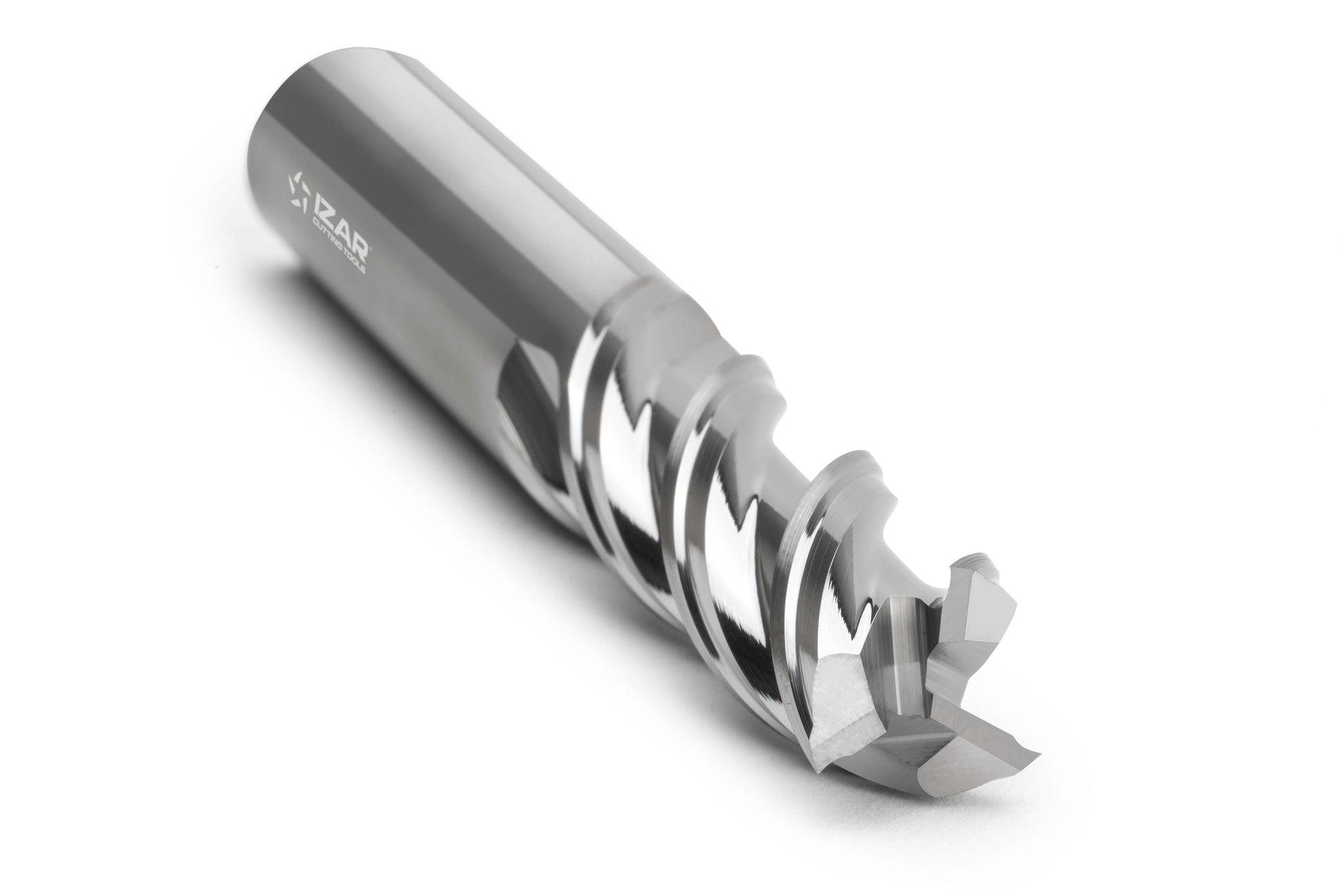

Izar 9437 — 3-Flute Mirror-Polished Solid Carbide Endmill (Ø3mm–Ø20mm)
High-performance carbide cutter for aluminum & non-ferrous CNC milling

The Izar 9437 is a premium solid carbide endmill engineered for high-speed, high-quality machining of aluminum and non-ferrous materials. With a 3-flute geometry, a 45° helix and mirror-polished flutes, the 9437 minimizes built-up edge, maximizes chip evacuation and delivers bright finishes even at aggressive spindle speeds. Available in sizes Ø1mm to Ø20mm, this carbide endmill is ideal for slotting, profiling, pocketing and finishing in CNC machining centers and manual mills.

Why machinists choose the Izar 9437:

• 3-flute geometry — excellent balance of chip clearance and rigidity for non-ferrous work (better chip room than 4-flute, stronger core than 2-flute).

• 45° helix — smoother shearing action, reduced cutting forces and improved surface finish.

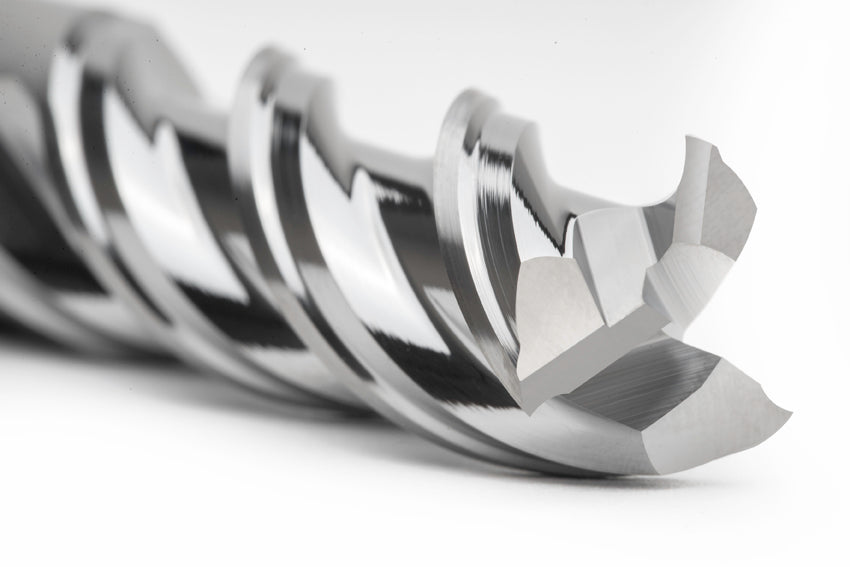

• Mirror-polished, wide-space flutes — resist welding and shed sticky chips quickly, reducing chatter and heat.

• Solid micro-grain carbide — high stiffness, excellent wear resistance and long life with high feeds/speeds.

• DIN 6535 HA straight shank compatibility for accurate, low-runout clamping.

Common applications: aluminum alloys (6000 / 7000 series), copper, brass, engineering plastics, acrylics, billet machining, and finishing passes where surface quality matters. Perfect for aluminium slotting, pocketing, profiling and contouring in production and prototype work.

3mm, 8mm Cut length, 50mm OAL, 6mm Shank

4mm, 12mm Cut length, 50mm OAL, 6mm Shank

5mm, 13mm Cut length, 50mm OAL, 6mm Shank

6mm, 15mm Cut length, 50mm OAL, 6mm Shank

8mm, 20mm Cut length, 60mm OAL, 8mm Shank

10mm, 30mm Cut length, 75mm OAL, 10mm Shank

12mm, 30mm Cut length, 75mm OAL, 12mm Shank

16mm, 40mm Cut length, 100mm OAL, 16mm Shank
