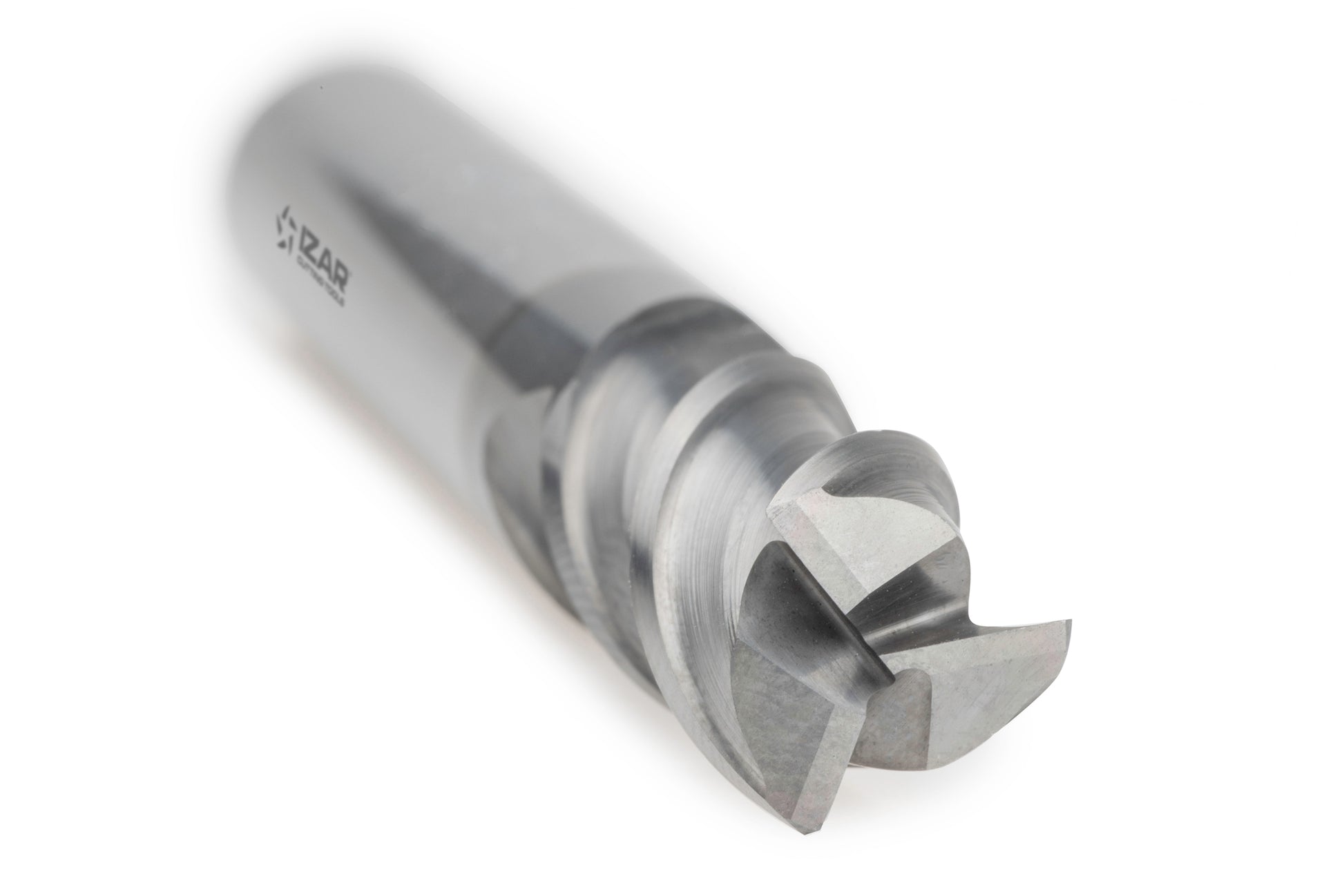

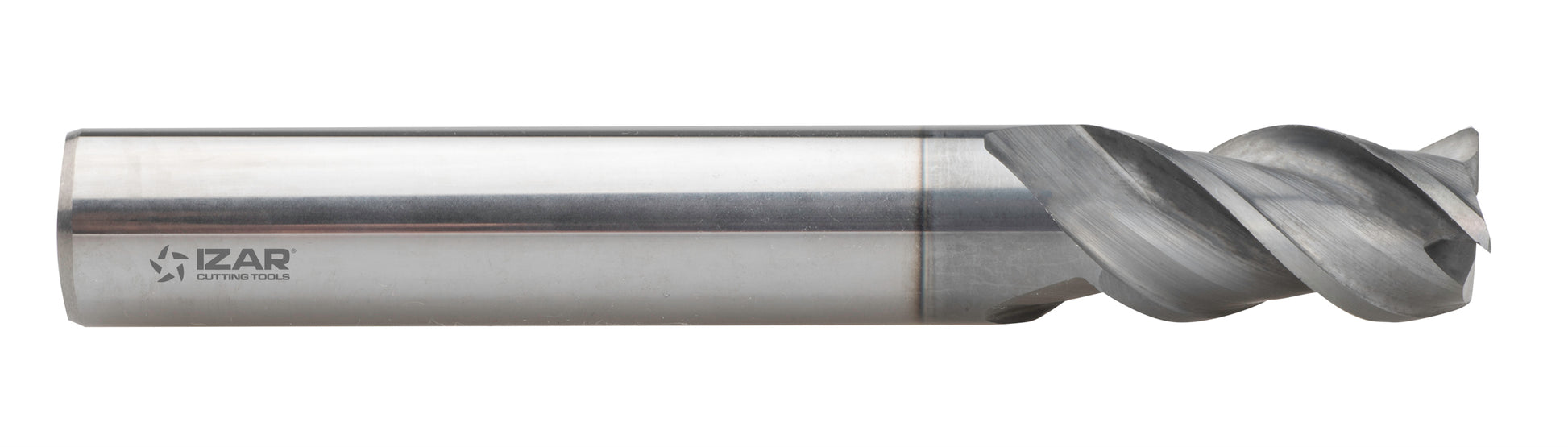

Izar 9436 — Solid Carbide Finishing Endmill (3-Flute, CROMAX-Coated, DIN 6528 W)

The Izar 9436 is a high-precision solid carbide endmill designed for demanding finishing operations, especially in stainless steels and high-alloy steels. Featuring 3 flutes, a CROMAX surface coating, and manufactured to DIN 6528 W standards, this endmill delivers superior surface quality, rigidity, and tool life across sizes Ø3 mm to Ø20 mm.

Geometry & Benefits

• Solid micro-grain carbide construction: Offers enhanced hardness and stiffness, minimizing deflection and wear—crucial for stainless-steel machining and maintaining tight tolerances.

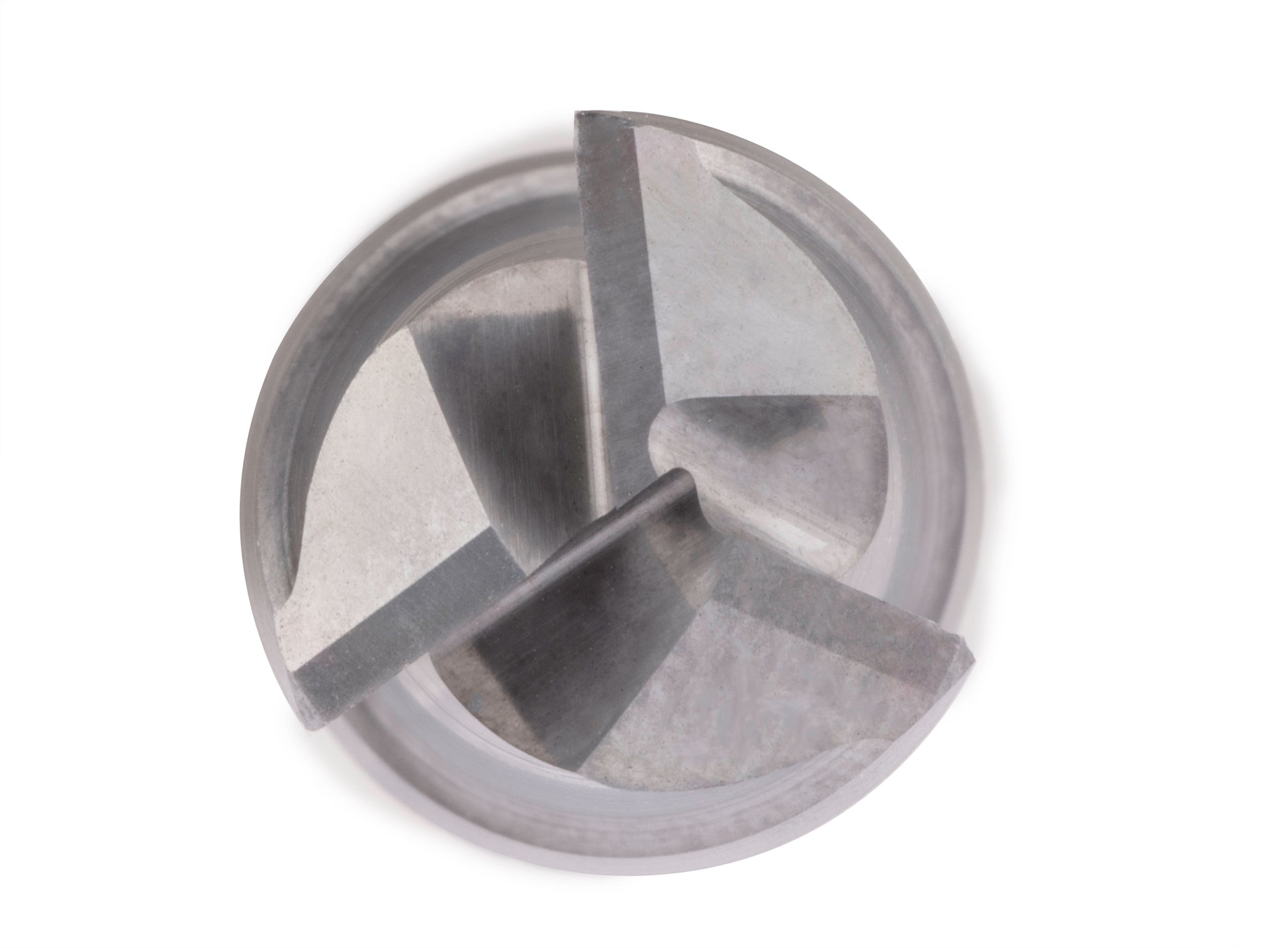

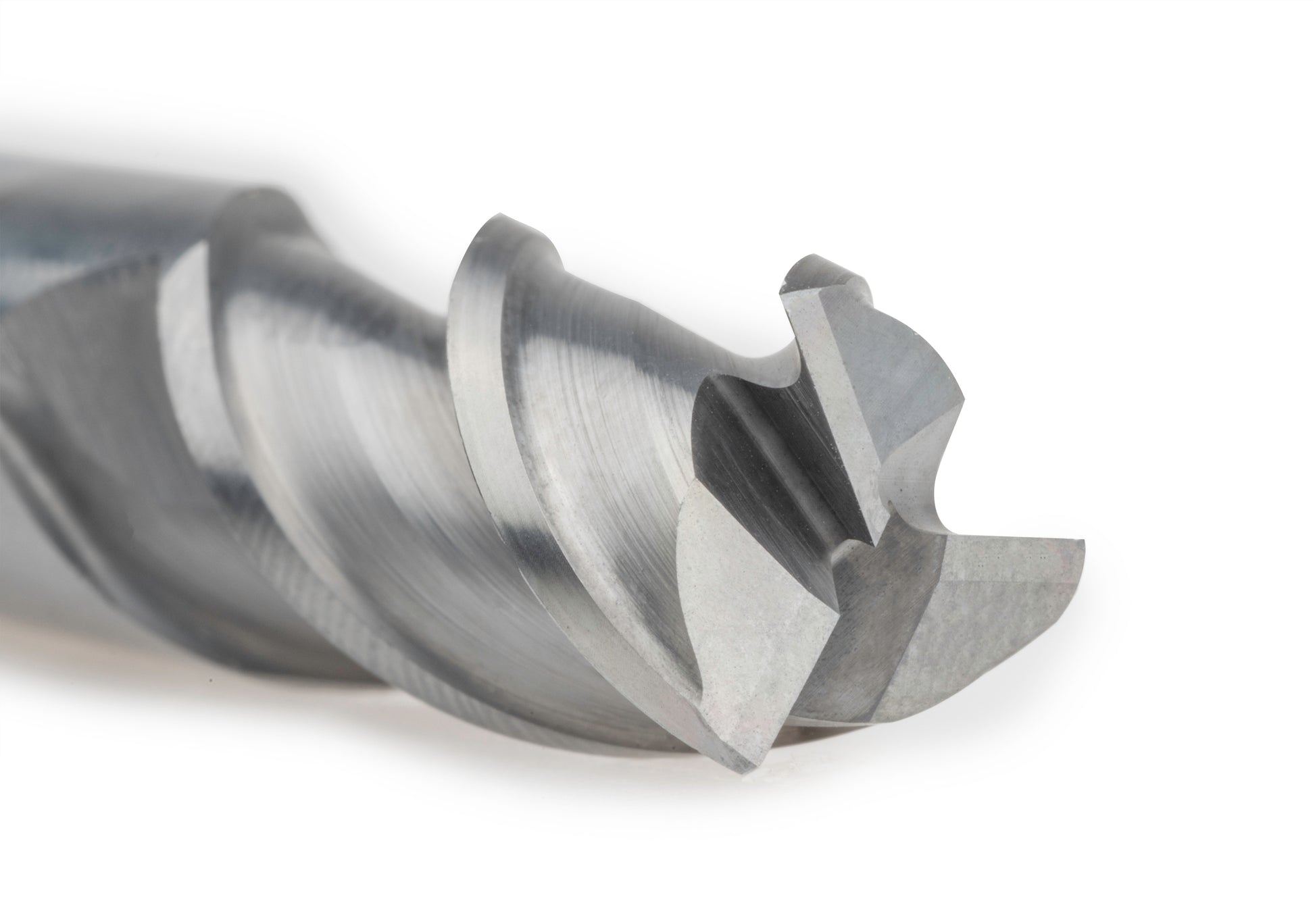

• 3-Flute (3Z) configuration: A perfect balance between rigidity and chip clearance. The three-flute setup strengthens the tool core while still providing enough space for effective swarf evacuation during milling.

• CROMAX coating: A chromium-based finish that reduces friction, resists heat and abrasion, and significantly contributes to extended tool life and consistent surface finish—especially in tough material like stainless.

• DIN 6528 W standard: Ensures reliable geometry for flat-end finishing — ideal for spec-compliant toolholders and consistent performance across production runs.

Typical Uses & Applications

• Finishing and light profiling in stainless steels (e.g., 304, 316), heat-resistant alloys, and high-strength steels where surface finish and tool life are critical.

• Precision CNC machining — excellent for parts such as medical components, aerospace aluminum alloys, mould tooling, and automotive stainless parts.

• Ideal when minimal deflection and maximum surface quality are required—especially in materials prone to work hardening or thermal expansion.

• Available sizes (Ø3–Ø20 mm) make it flexible for both fine-detail work (moulds, dies) and larger finish passes on bigger components.

3mm, Cutting length 8mm, 38mm OAL, 3mm Shank

4mm, Cutting length 8mm, 50mm OAL, 4mm Shank

5mm, Cutting length 10mm, 50mm OAL, 5mm Shank

6mm, Cutting length 10mm, 57mm OAL, 6mm Shank

8mm, Cutting length 16mm, 63mm OAL, 8mm Shank

10mm Cutting length 19mm, 72mm OAL, 10mm Shank

12mm Cutting length 22mm, 83mm OAL, 12mm Shank
