Izar 9431 — Solid Carbide Finishing Endmill (3-Flute, 30° Helix, CROMAX-Coated, DIN 6528 N)

Izar 9431 — Solid Carbide Finishing Endmill (3-Flute, 30° Helix, CROMAX-Coated, DIN 6528 N)

£11.50 GBP
£11.50 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Izar 9431 is a high-efficiency 3-flute solid carbide endmill, made from premium micro-grain carbide and finished with a CROMAX coating. With its 30° helical geometry and DIN 6528 N standards compliance, this cutter delivers balanced chip evacuation, superior rigidity, and outstanding surface finish. Available in a variety of common diameters (e.g., Ø4–12 mm) in short-series configurations, it's a trusted general-purpose performer for everyday machining needs.

Geometry & Benefits

  • Micro-grain solid carbide: Delivers excellent rigidity and wear resistance—critical for achieving tight finishing tolerances.

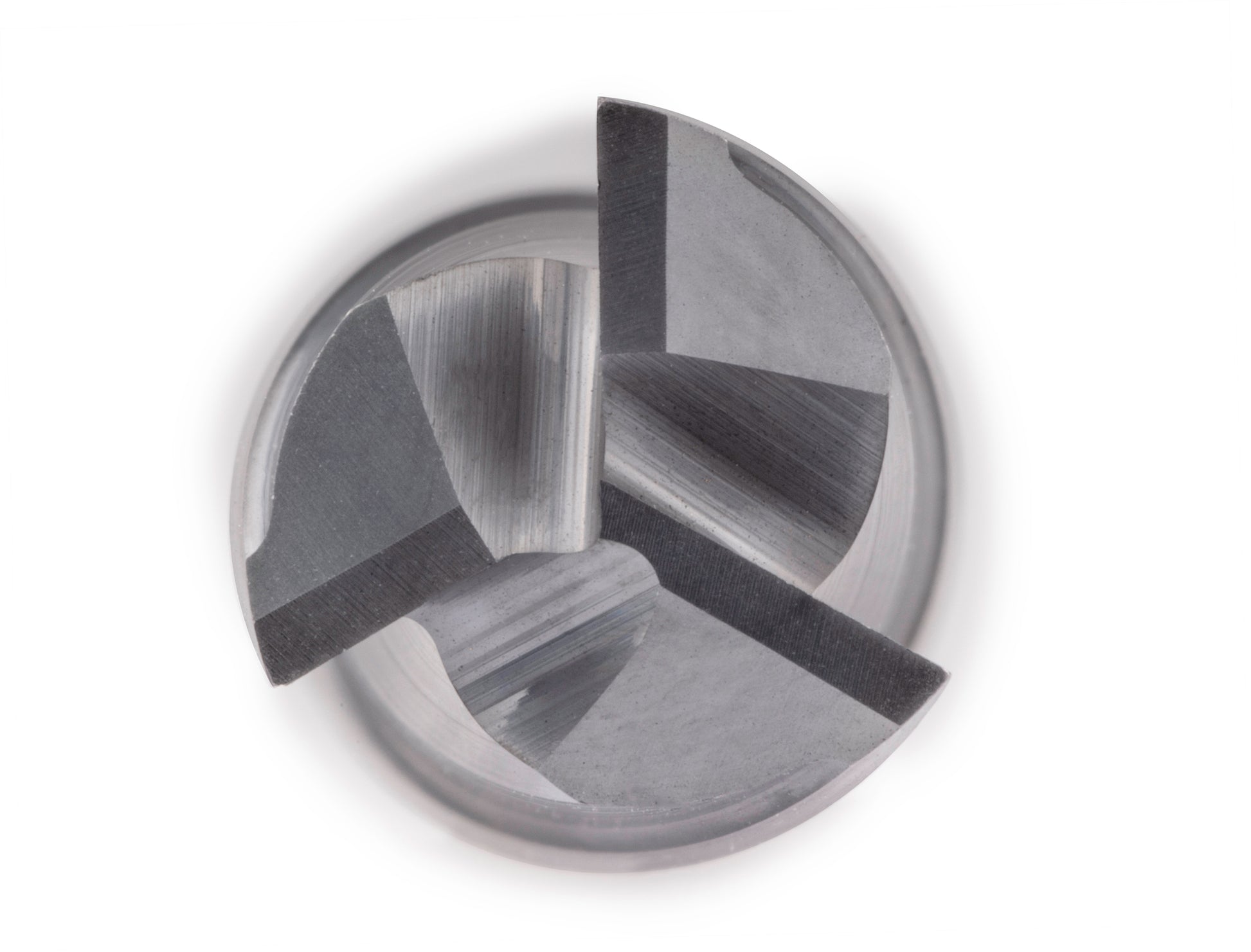

  • 3-Flute (3Z) configuration: A smart compromise offering better chip clearance than 4-flute cutters while retaining a strong core for finishing tasks.

  • 30° helix angle: Provides smooth cutting action, good chip flow, and surface finish across a range of materials.

  • CROMAX coating: Reduces friction, enhances resistance to heat and abrasion, and extends tool service life, especially in general-purpose machining.

  • DIN 6528 N compatibility: Ensures consistent geometry that fits standard toolholders and CAM strategies.

Typical Uses & Applications

  • General finishing and profile milling in materials like construction and alloyed steels, cast iron, titanium alloys—common in everyday machining scenarios.

  • Ideal for short-series and general-purpose tasks where a durable, versatile cutter is needed.

  • Common sizing sets (4–12 mm) make it a go-to option for shops requiring a range of sizes with familiar geometry.

Recommended Feeds & Speeds (Ø10 mm Example)

Material Feed (mm/rev) Cutting Speed (Vc, m/min)
Construction / Carbon Steel 0.002 125–160
Alloyed Steel (<300 HB) 0.002 112–150
Heat-Treatable Alloyed Steel 0.002 60–130
Cast Iron (<200 HB) 0.008 68–95
Cast Iron (200–300 HB) 0.008 68–95
Titanium Alloys 0.002 40–70



1mm, Cutting length 3mm, 38mm OAL, 3mm Shank

2mm, Cutting length 6mm, 38mm OAL, 3mm Shank

3mm, Cutting length 8mm, 38mm OAL, 3mm Shank

4mm, Cutting length 8mm, 50mm OAL, 4mm Shank

5mm, Cutting length 10mm, 50mm OAL, 5mm Shank

6mm, Cutting length 10mm, 57mm OAL, 6mm Shank

8mm, Cutting length 16mm, 63mm OAL, 8mm Shank

10mm, Cutting length 19mm, 72mm OAL, 10mm Shank

12mm, Cutting length 22mm, 83mm OAL, 12mm Shank

16mm, Cutting length 36mm, 92mm OAL, 16mm Shank
