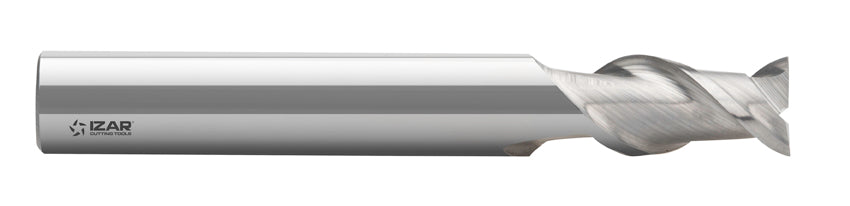

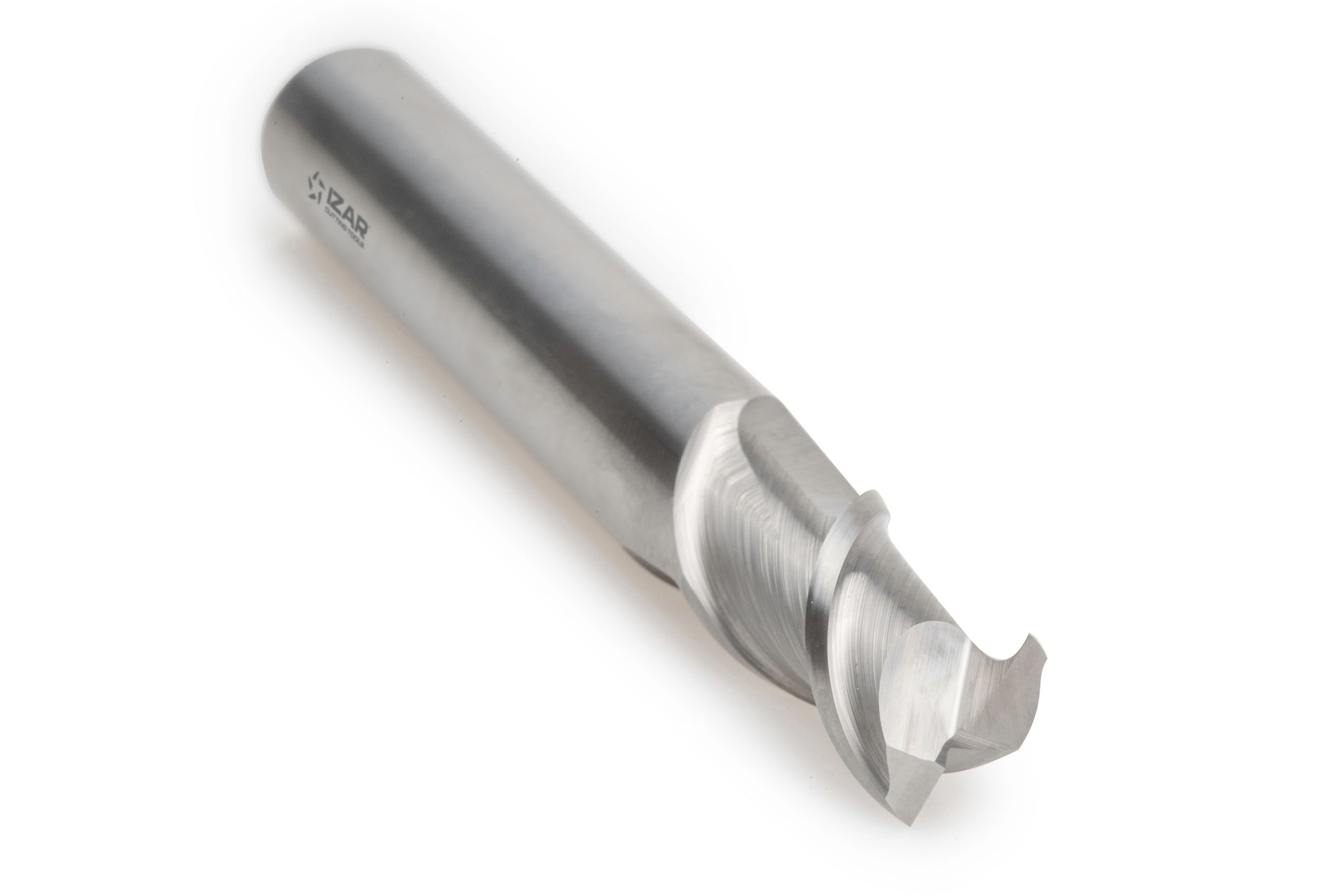

Izar 9427 — Solid Carbide Aluminium Cutter (2-Flute, 45° Helix, DIN 6528 N)

The Izar 9427 is a high-performance solid carbide aluminium cutter crafted for fast, clean, and precise machining of aluminum and other non-ferrous metals. Featuring a 2-flute geometry, a 45° helix, and built to IZAR-Std. N (DIN 6528 N) specifications in a compact short-series form (e.g., Ø6 mm × 10 mm cutting length × 57 mm overall length), this tool excels in high-speed, high-feed milling applications where chip control and surface finish matter.

Geometry & Benefits

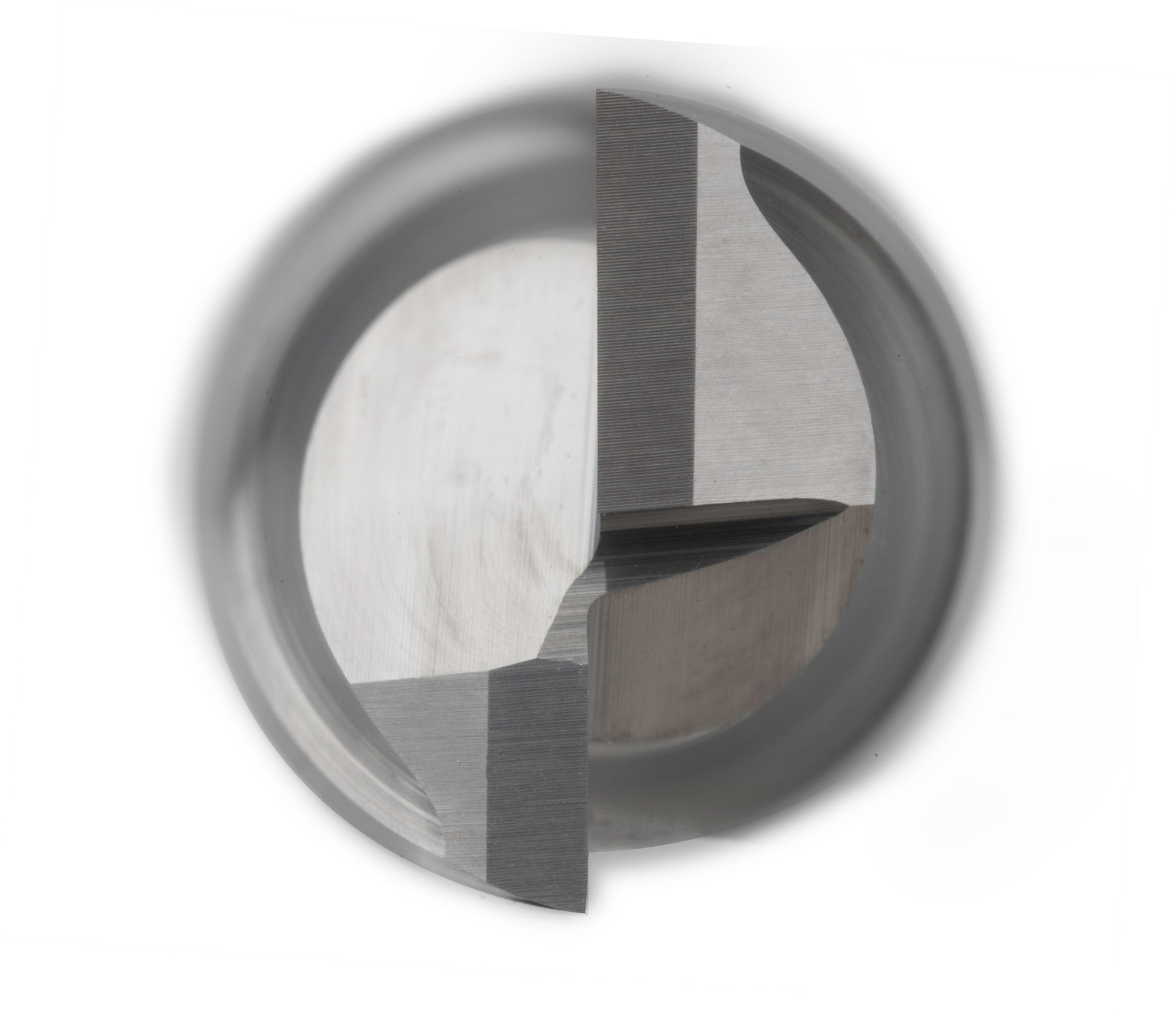

• 2-Flute geometry: Maximizes flute space for superior chip evacuation—critical when machining aluminum and other ductile materials.

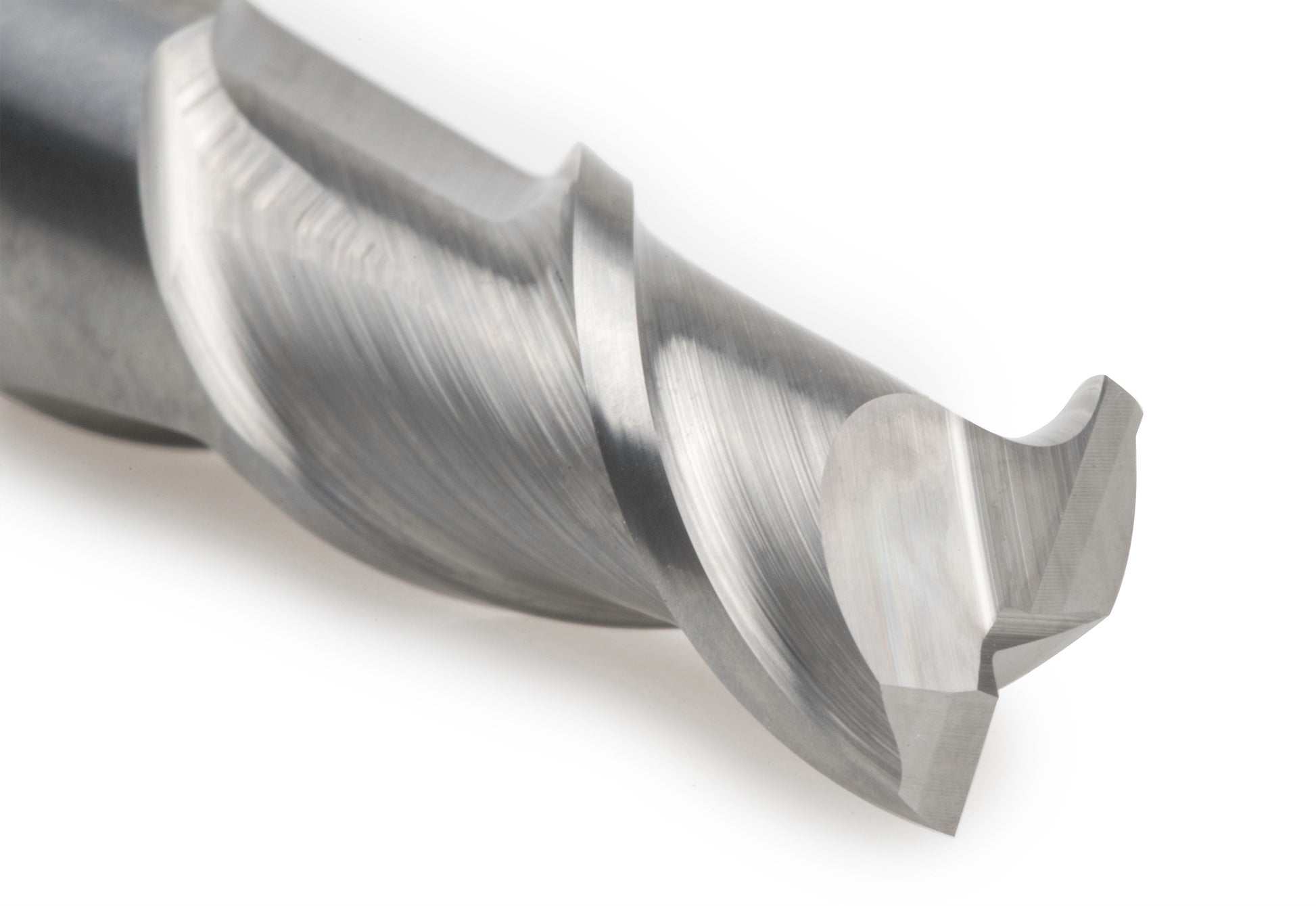

• 45° helix angle: Enhances cutting smoothness, lowers cutting forces, and improves surface finish at increased feed rates.

• Mirror-polished surface (inherent to UF carbide finish): Helps prevent built-up edge and ensures cleaner cuts.

• Micro-grain carbide (UF): Offers excellent rigidity and wear resistance for demanding, high-speed aluminium cutting.

• DIN 6528 N compliance: Ensures compatibility with standard tooling systems and predictable performance in CNC setups.

Typical Applications

• High-speed slotting, profiling, and finishing in aluminium alloys (i.e., unalloyed Al-Mg, Al-Mg Si under and above 10%).

• Efficient machining of non-ferrous materials such as brass, copper, and bronze.

• Ideal for CNC operations where rapid chip removal, high surface quality, and fast feeds are required.

• Suited to short-series, production, and precision milling in sectors like aerospace, mold-making, and automotive.

2mm, 8mm Cut length, 38mm OAL, 3mm Shank

3mm, 8mm Cut length, 38mm OAL, 3mm Shank

4mm, 8mm Cut length, 50mm OAL, 4mm Shank

5mm, 10mm Cut length, 50mm OAL, 5mm Shank

6mm, 10mm Cut length, 57mm OAL, 6mm Shank

8mm, 16mm Cut length, 63mm OAL, 8mm Shank

10mm, 19mm Cut length, 72mm OAL, 10mm Shank

12mm, 22mm Cut length, 83mm OAL, 12mm Shank
