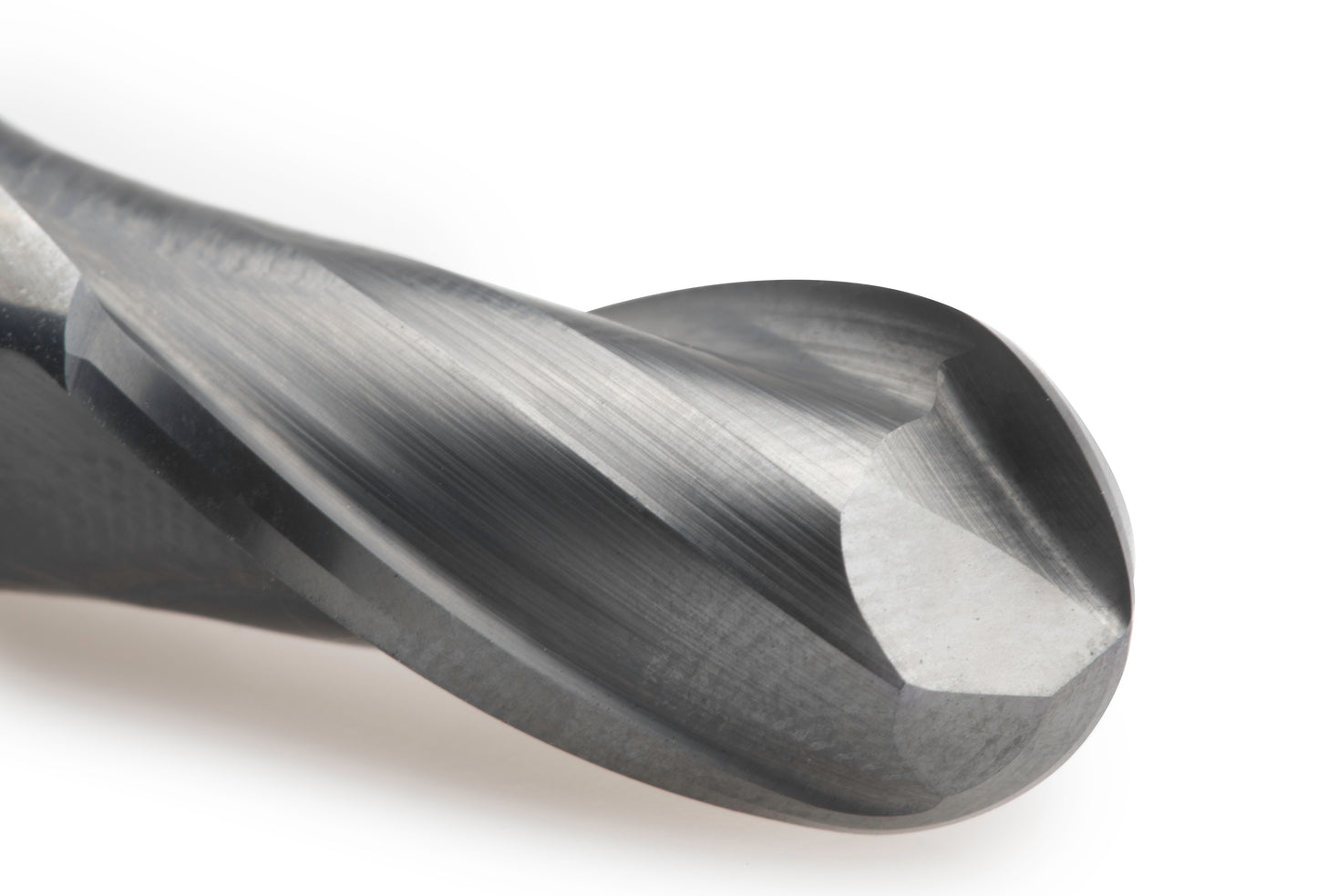

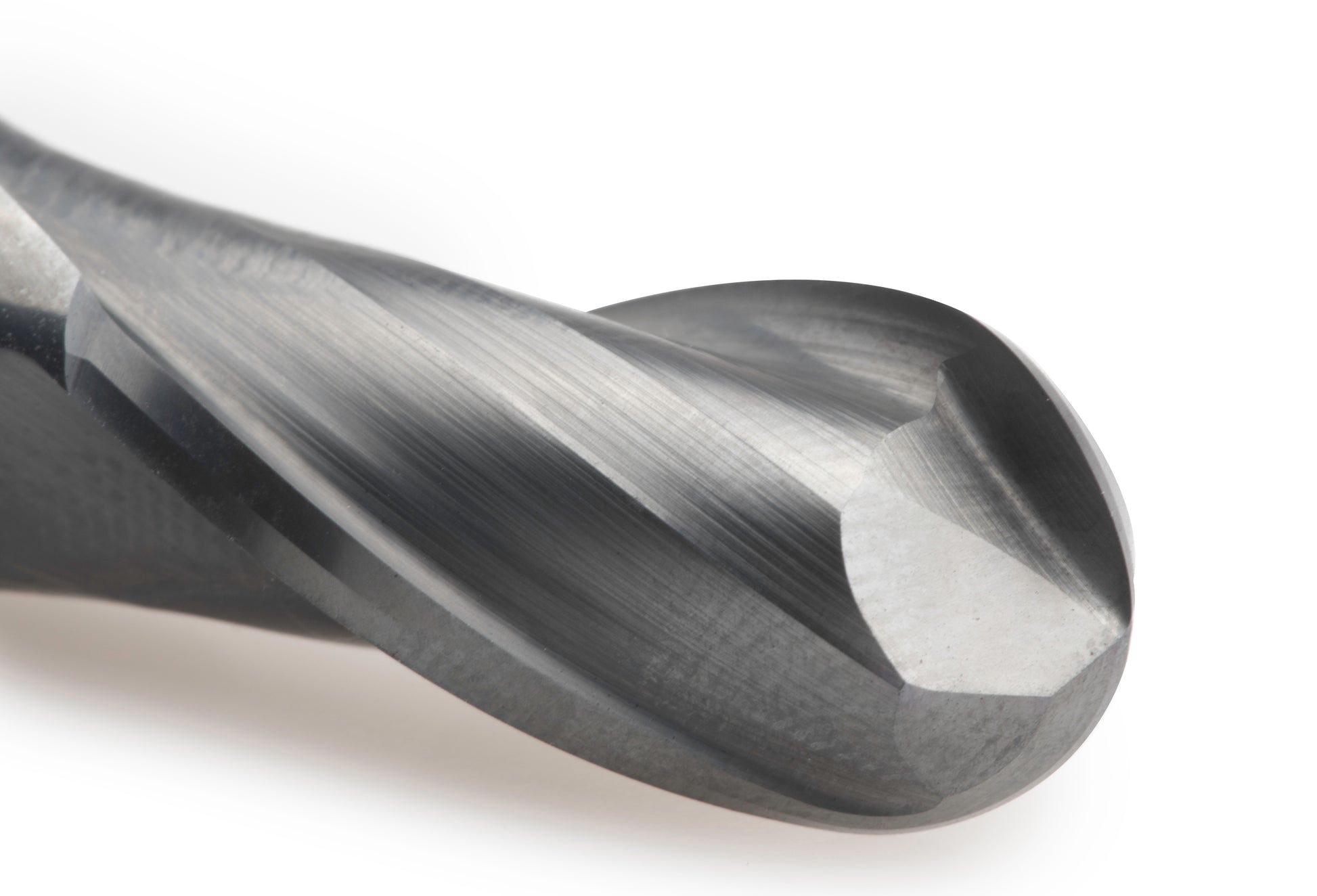

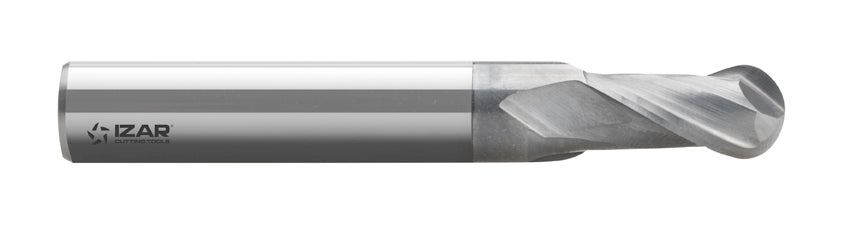

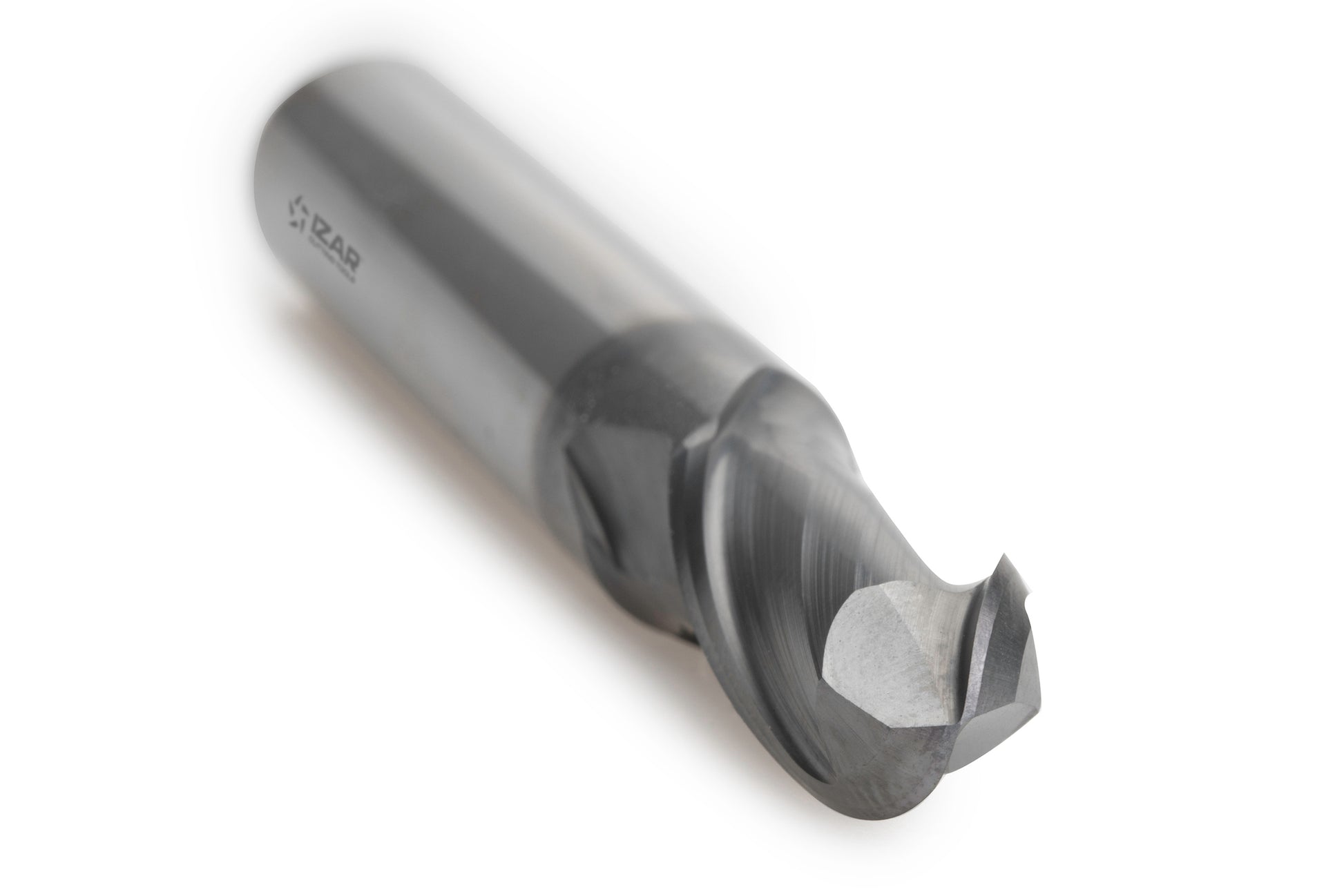

Izar 9425 — Solid Carbide Ball Nose Endmill (2-Flute, CROMAX-Coated, DIN 6528 N)

The Izar 9425 is a high-performance ball nose endmill crafted from premium micro-grain carbide and finished with a CROMAX coating, designed for precision profiling, 3D contour milling, and finishing operations. Its 2-flute radial ball nose design ensures smooth toolpaths and flawless finishes in complex geometries—highlighting its suitability for mould & die, aerospace, and high-precision parts machining.

Geometry & Benefits

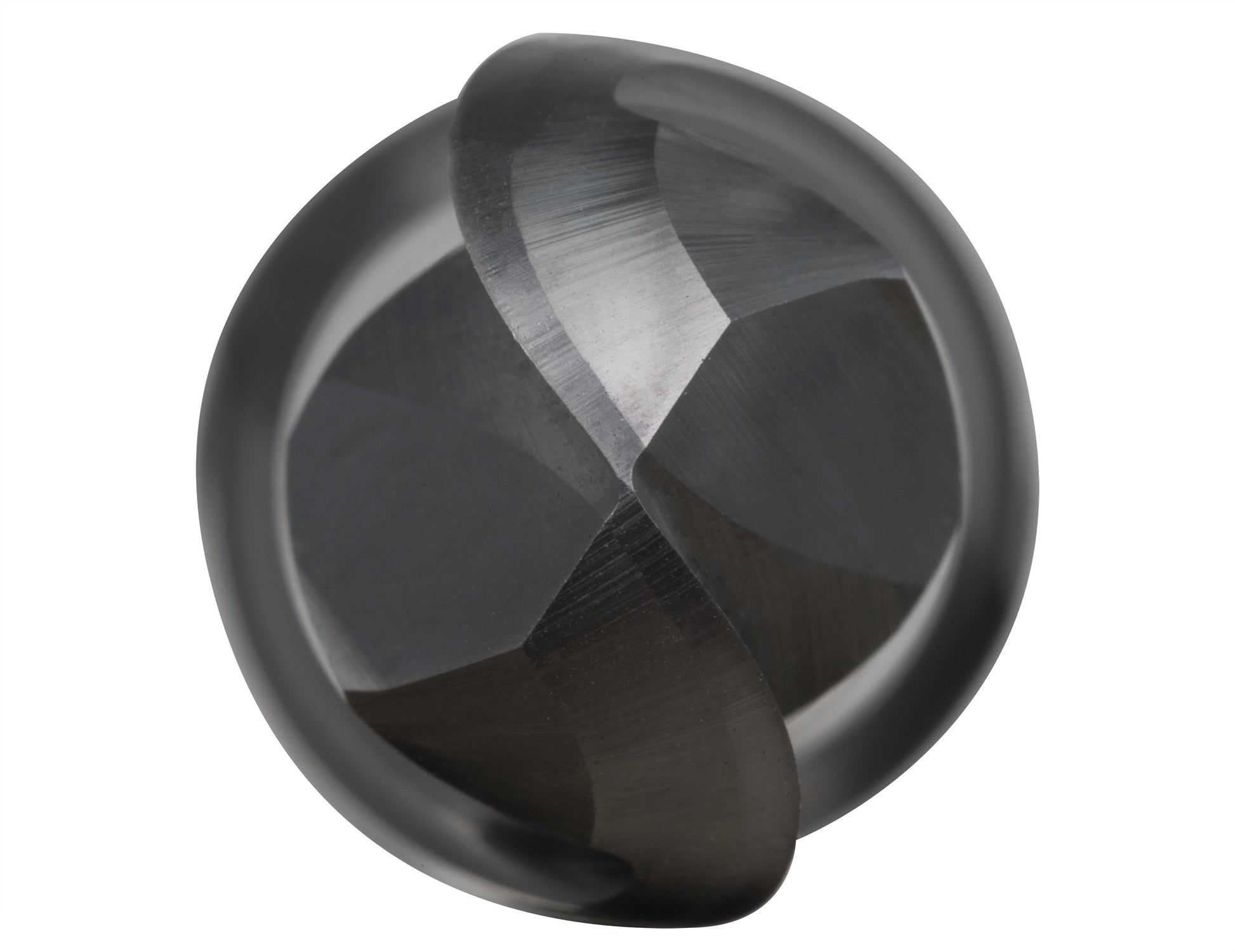

• Ball Nose Profile (2-Flute): Enables seamless 3D contouring and accurate pocketing, delivering excellent surface finishes in freeform milling.

• Micro-grain Solid Carbide: Provides rigidity and superior wear resistance—essential for consistent performance in high-precision applications.

• CROMAX Coating: Enhances tool life by reducing friction and heat, particularly effective in high-speed or abrasive machining environments.

• DIN 6528 N Standard Geometry: Ensures consistent tool performance and easy integration into standard tool-holding systems.

Typical Uses & Applications

• 3D contouring and profiling — perfect for freeform surfaces in mould, die, and aerospace components.

• High-quality finishing — delivers flawless surface finishes in materials like aluminum, steel, titanium, and hardened alloys.

• Automotive and aerospace — essential for machining complex surfaces where accuracy and finish are critical.

2mm Cut length 5mm, 38mm OAL, 3mm Shank

3mm Cut length 12mm, 38mm OAL, 3mm Shank

4mm Cut length 12mm, 50mm OAL, 4mm Shank

5mm Cut length 16mm, 50mm OAL, 5mm Shank

6mm Cut length 16mm, 57mm OAL, 6mm Shank

8mm Cut length 20mm, 63mm OAL, 8mm Shank

10mm Cut length 22mm, 72mm OAL, 10mm Shank

12mm Cut length 22mm, 83mm OAL, 12mm Shank
