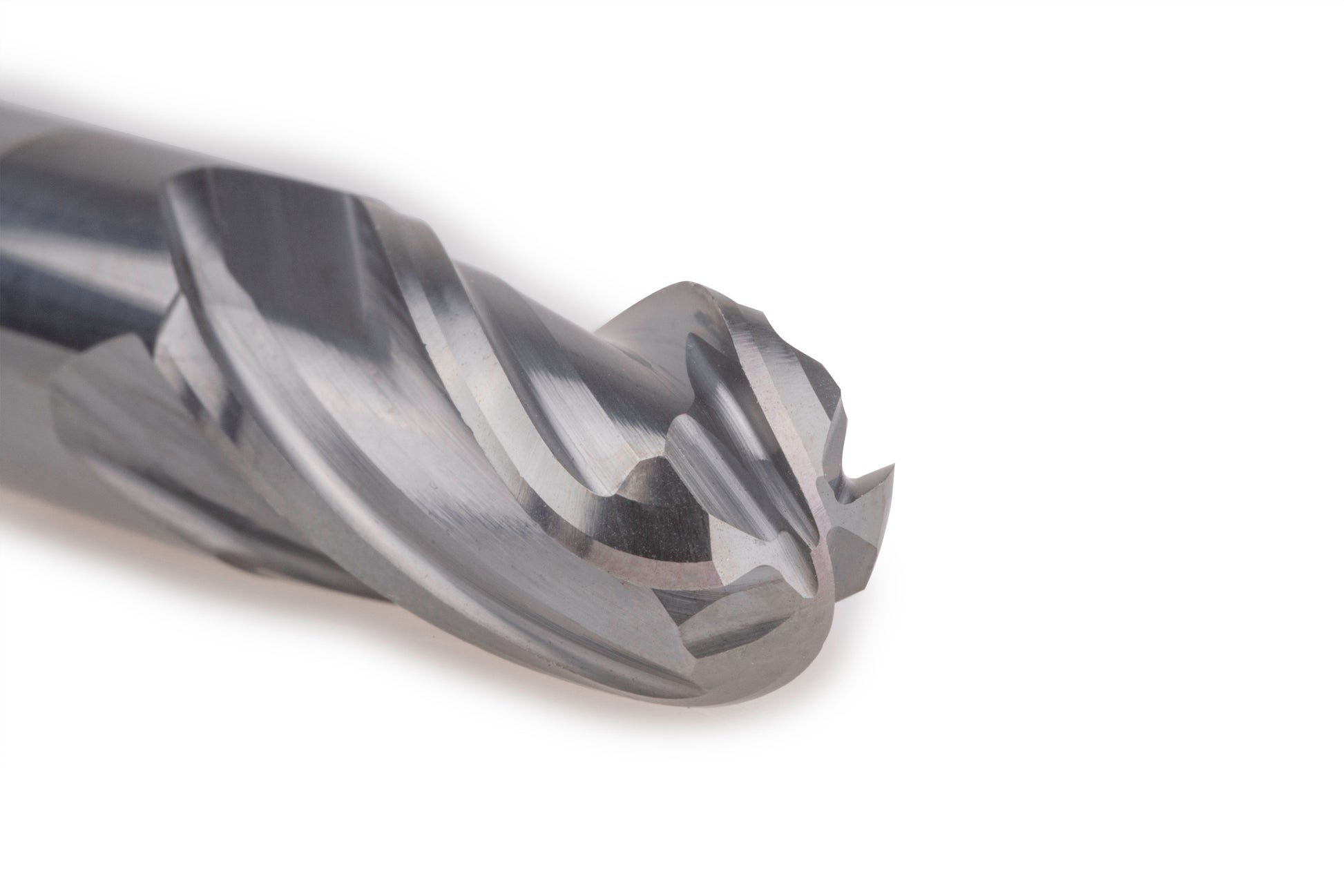

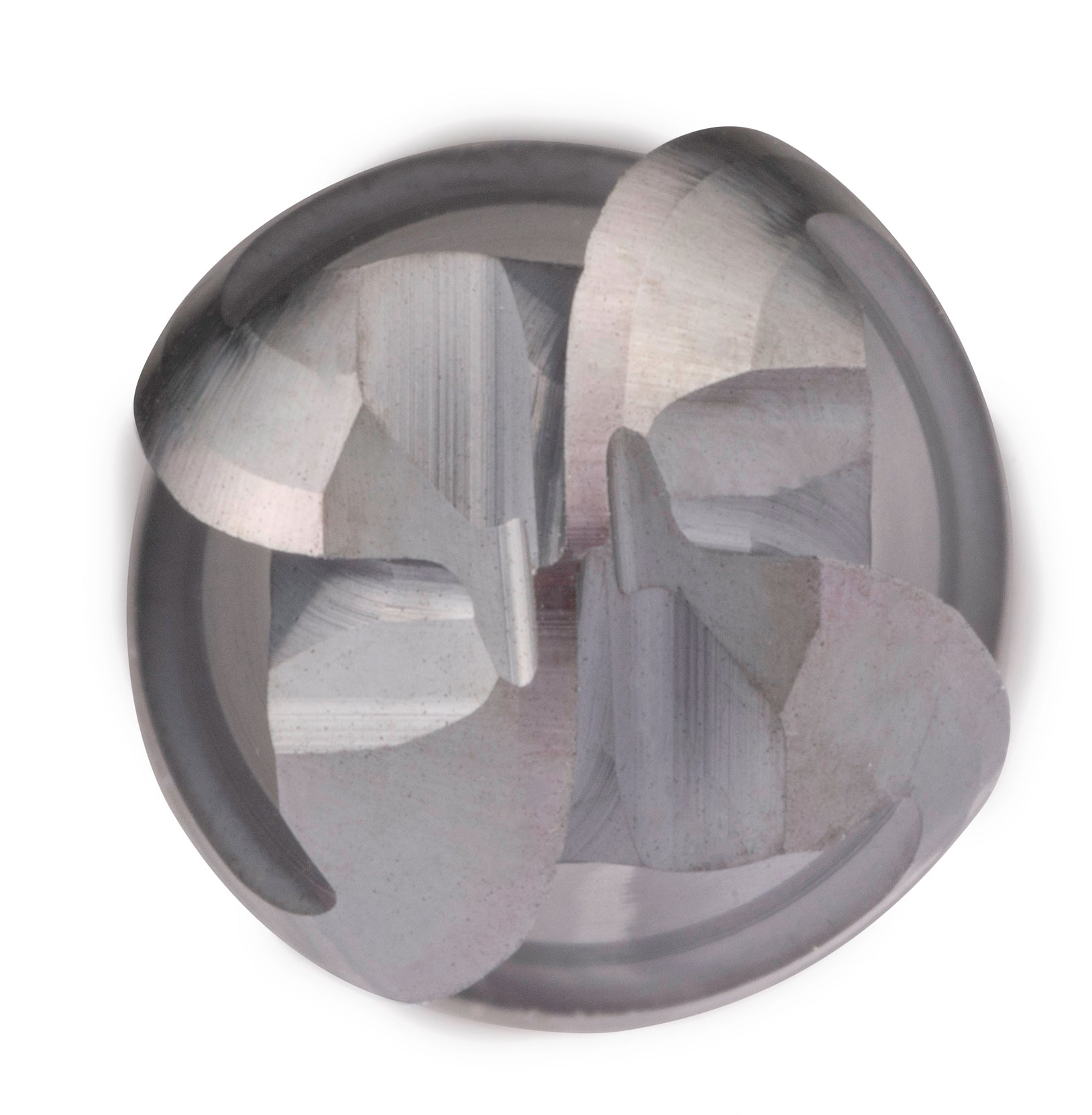

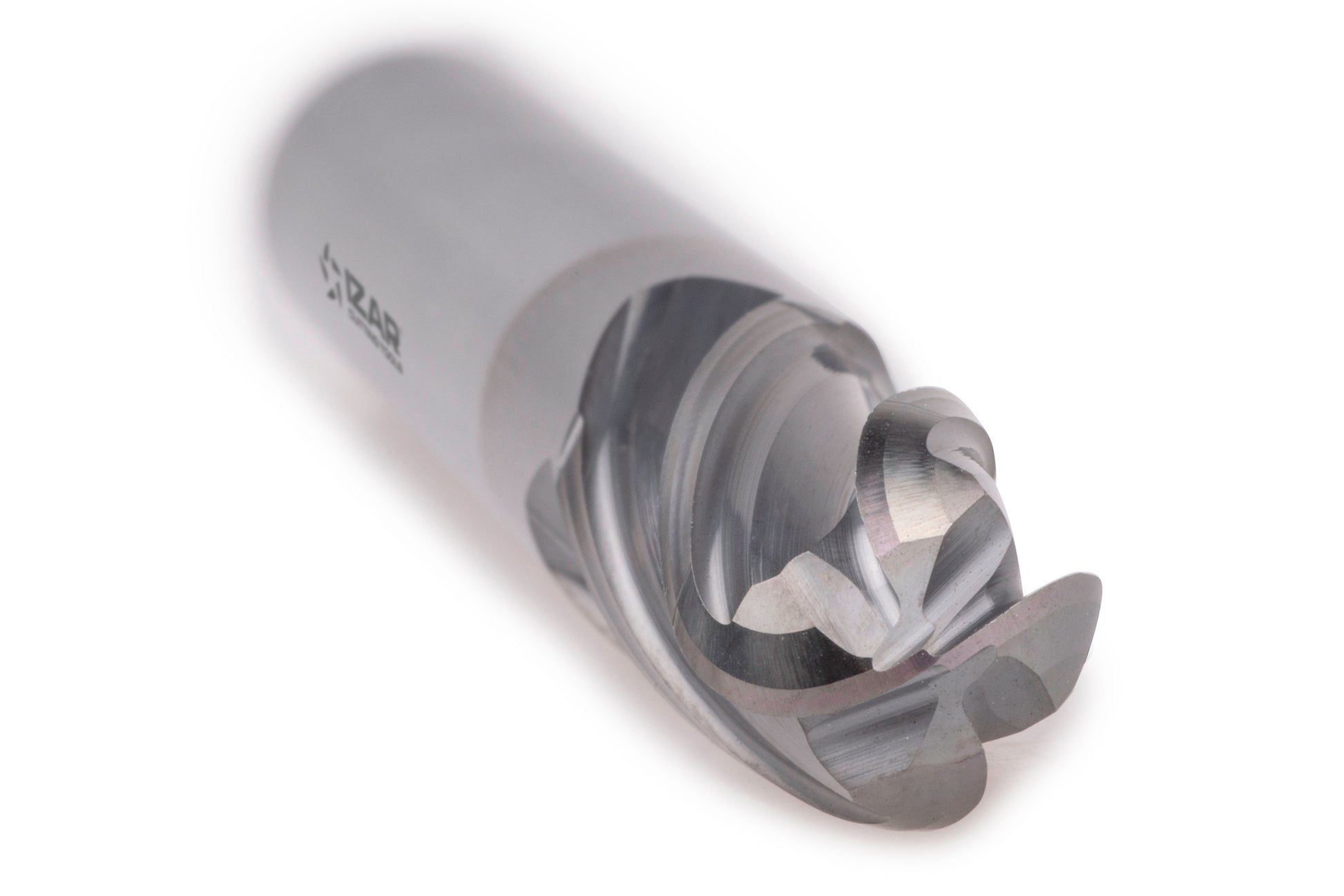

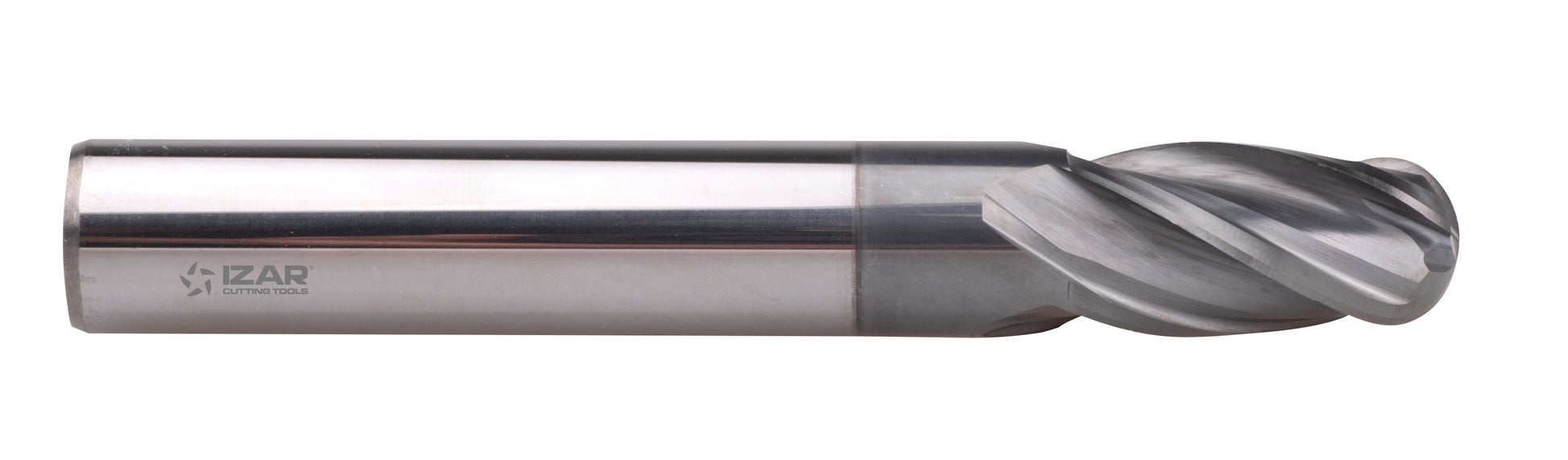

Izar 9412 — Solid Carbide Ball Nose Endmill (DIN 6528 N, AlCrO-PRO Coating)

The Izar 9412 Ball Nose Endmill is a premium solid carbide cutter designed for precision 3D contouring, profiling, and finishing operations. Manufactured to DIN 6528 N standards, this tool combines advanced AlCrO-PRO coating with optimized ball nose geometry to deliver excellent tool life, surface finish, and performance when machining steels, stainless steels, hardened materials, and exotic alloys.

Geometry & Benefits

• Ball Nose Profile: Enables smooth 3D machining, contouring, and pocketing with precision, ideal for moulds, dies, and complex surface finishing.

• Solid Micrograin Carbide: High hardness and wear resistance, ensuring longer tool life and stable cutting in demanding materials.

• AlCrO-PRO Coating: Advanced Aluminium-Chromium Oxide coating enhances heat resistance, reduces friction, and increases cutting speed capability.

• DIN 6528 N Standard: Industry-standard geometry for compatibility and reliable performance across CNC and conventional machines.

• Optimised Cutting Edges: Reduces vibration and improves chip evacuation, especially important for deep-pocket and finishing operations.

Typical Applications

• 3D Contouring & Profiling: Perfect for mould & die industries, aerospace, and precision component manufacturing.

• Finishing Operations: Delivers excellent surface finishes in hardened steels and alloys.

• Machining Exotic Materials: Performs well on stainless steel, titanium, and nickel-based alloys where conventional cutters struggle.

• Complex Pocketing & Slotting: Allows smooth toolpaths and reduced rework thanks to its ball nose geometry.

3mm, Cutting length 12mm, 38mm OAL, 3mm Shank

4mm, Cutting length 12mm, 50mm OAL, 4mm Shank

5mm, Cutting length 16mm, 50mm OAL, 5mm Shank

6mm, Cutting length 16mm, 57mm OAL, 6mm Shank

8mm, Cutting length 20mm, 63mm OAL, 8mm Shank

10mm, Cutting length 22mm, 72mm OAL, 10mm Shank

12mm, Cutting length 22mm, 83mm OAL, 12mm Shank
