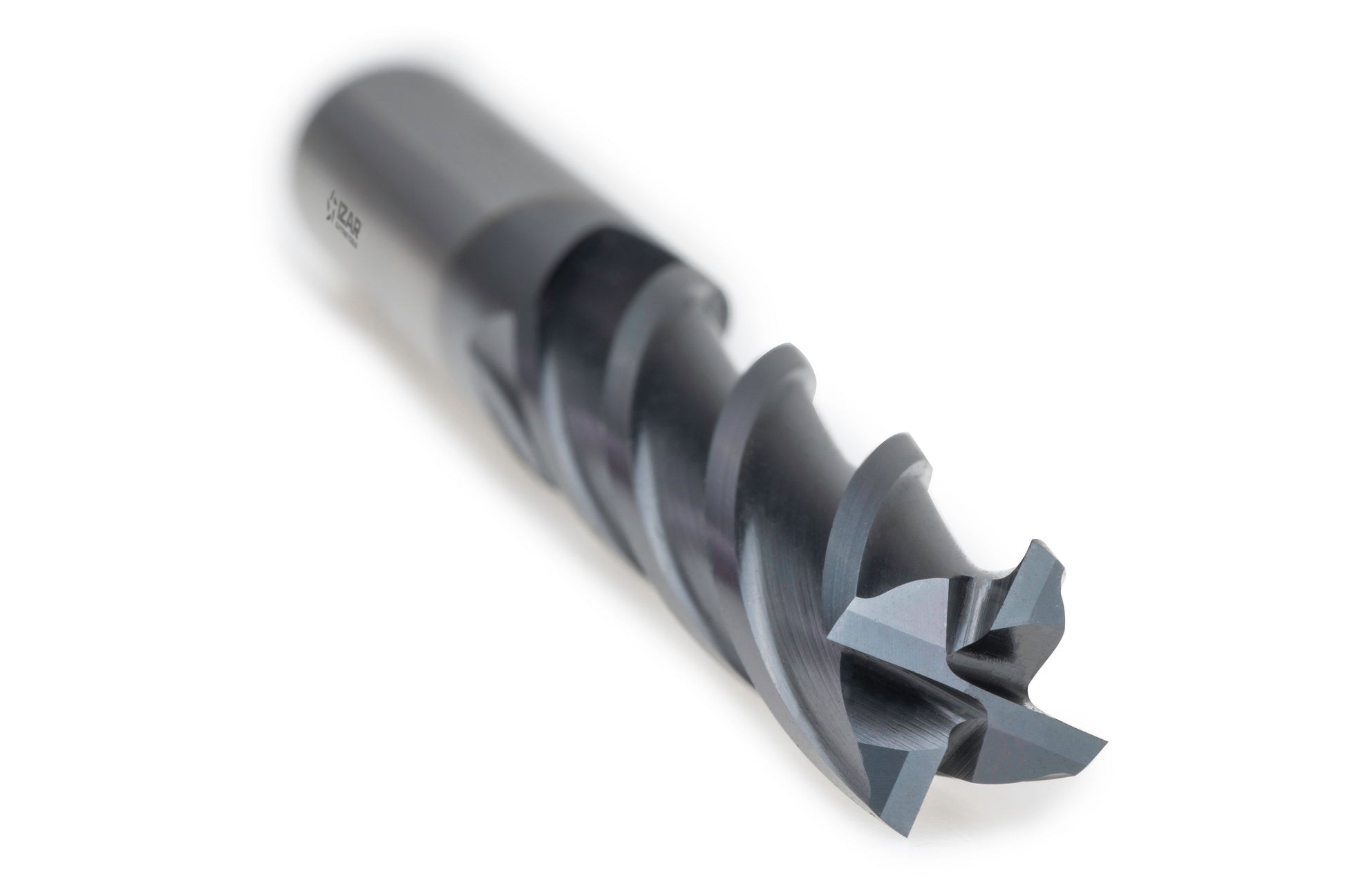

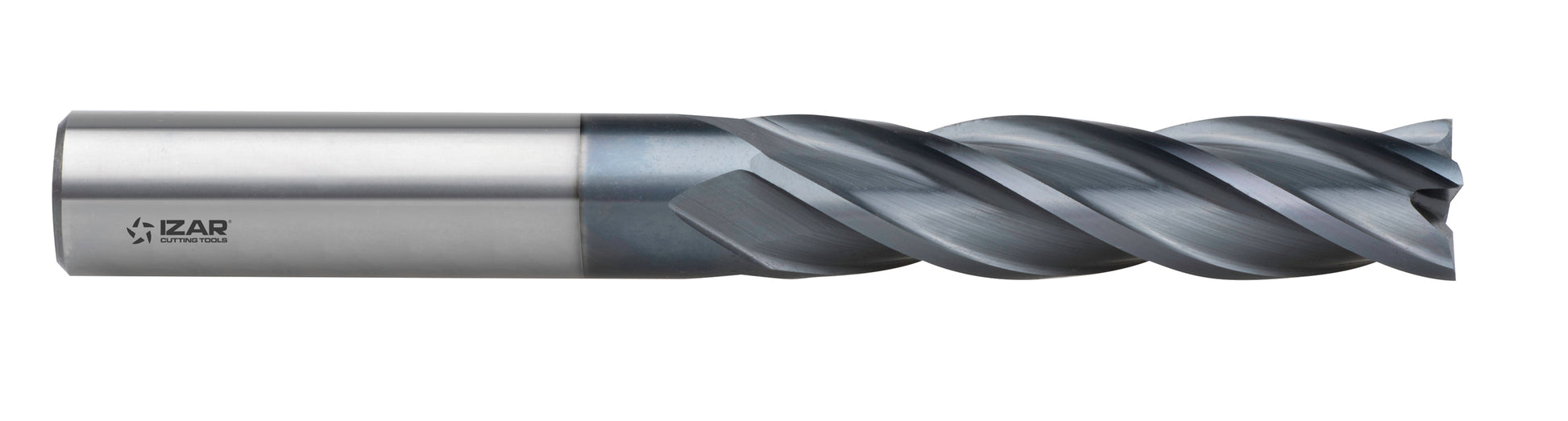

Izar 9410 — Solid Carbide Finishing Endmill (4-Flute, 30° Helix, CROMAX-Coated, Long Version)

The Izar 9410 is a high-precision 4-flute solid carbide endmill, crafted from micro-grain carbide and coated with CROMAX for enhanced performance and wear resistance. Built to Izar-Std. N standards, this tool combines excellent rigidity, surface finish, and long tool life. Available in both standard and long-length variants, it’s ideal for finishing operations across a broad spectrum of materials.

Geometry & Benefits

• Solid micro-grain carbide construction: Provides superior hardness and minimized deflection—key for finishing and maintaining tight tolerances.

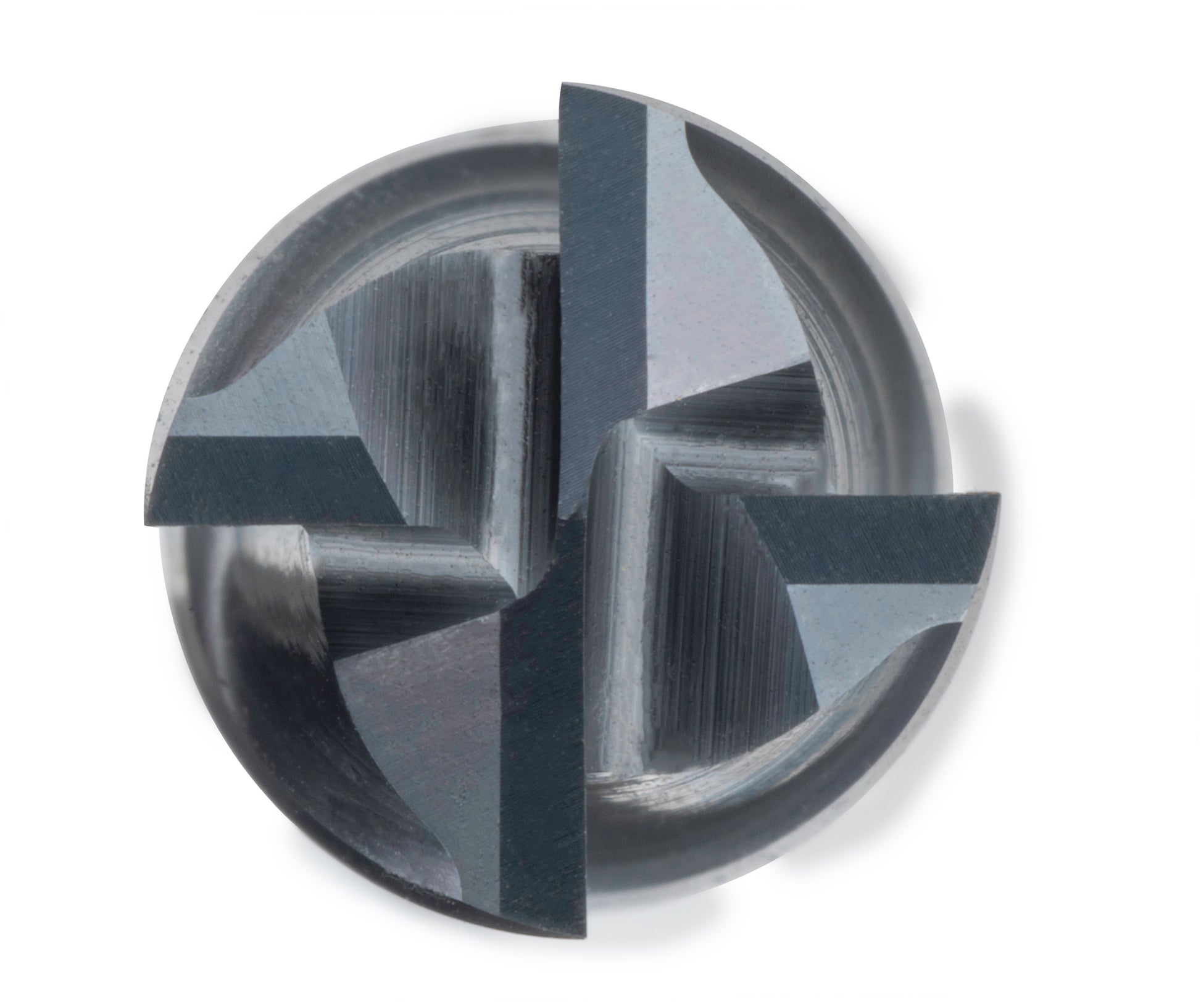

• 4-flute (4Z) design: Offers maximum material removal and smooth surface finish with high radial engagement—great for fine milling.

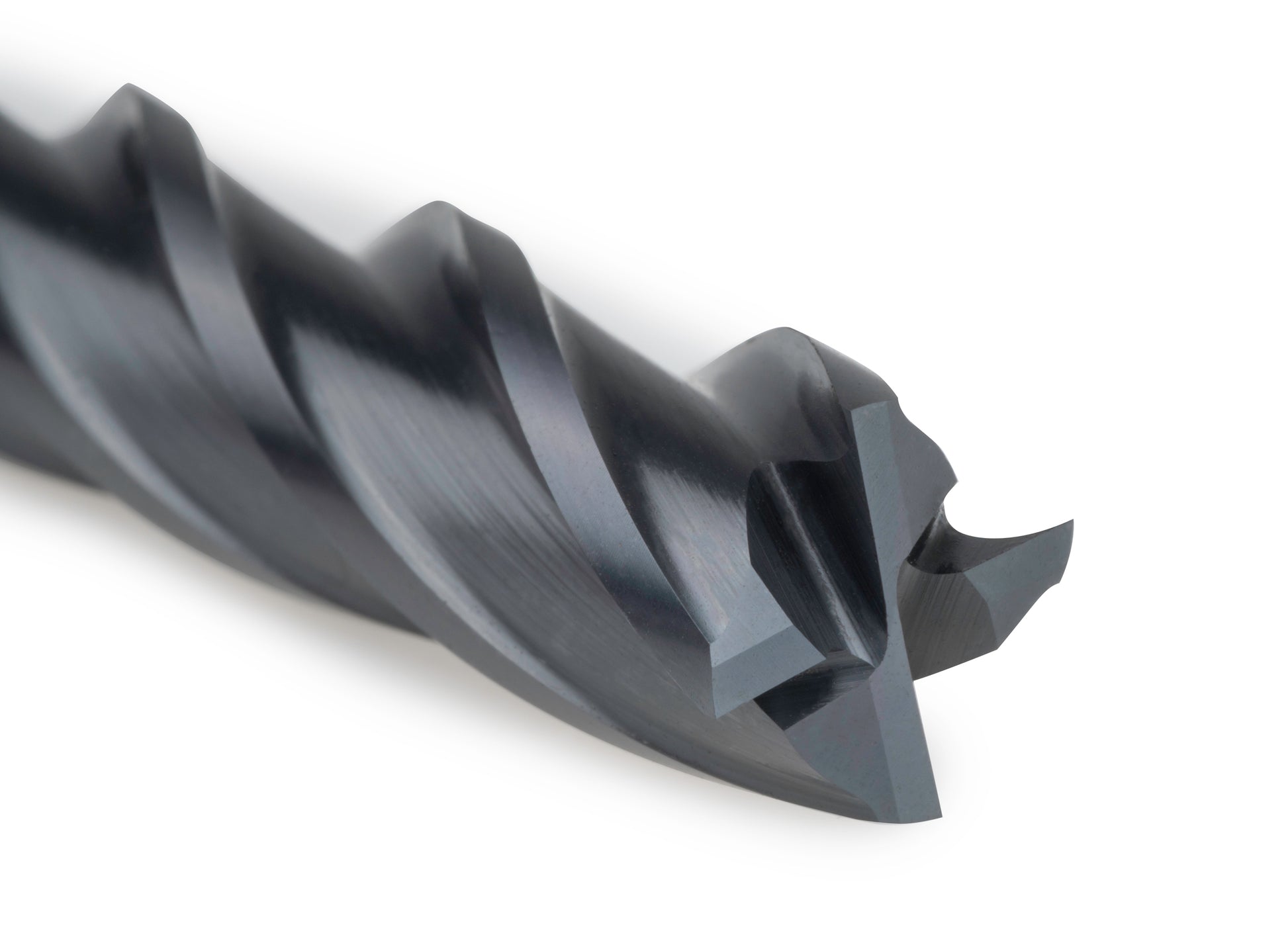

• 30° helix angle: A moderate helix that offers a fine balance of shear cutting and chip evacuation, reducing vibration and leaving cleaner surfaces.

• CROMAX coating: A chromium-based finish that lowers friction, boosts wear resistance, and supports high-speed finishing across challenging materials.

• Long-length variants: Options up to 150 mm cutting length (e.g., Ø12×150 mm) extend reach for deeper slots or hard-to-access features without sacrificing endmill stability.

Typical Uses & Applications

• Finishing passes in steels, stainless steels, aluminum/magnesium alloys, titanium, cast iron, and plastics—especially where surface quality is critical.

• Deep or hard-to-access features using long-length versions (e.g., Ø12×150 mm) in molds, fixtures, and complex parts.

• CNC machining and high-precision milling that demands consistent geometry, high rigidity, and repeatable performance.

3mm, Cutting length 20mm, 75mm OAL, 3mm Shank

4mm, Cutting length 20mm, 75mm OAL, 4mm Shank

5mm, Cutting length 20mm, 75mm OAL, 5mm Shank

6mm, Cutting length 25mm, 100mm OAL, 6mm Shank

8mm, Cutting length 25mm, 100mm OAL, 8mm Shank

10mm, Cutting length 40mm, 100mm OAL, 10mm Shank

12mm, Cutting length 50mm, 100mm OAL, 12mm Shank
