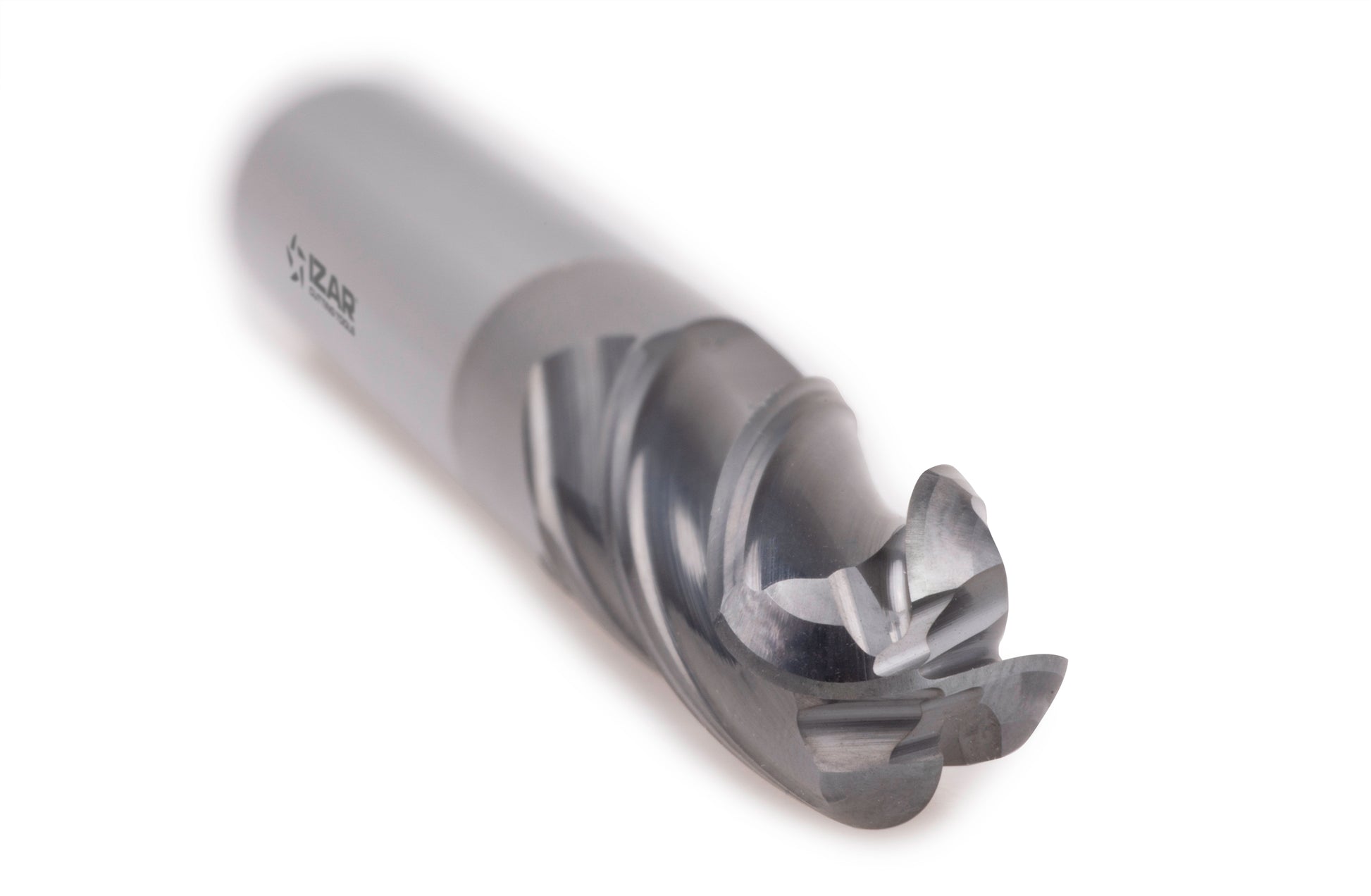

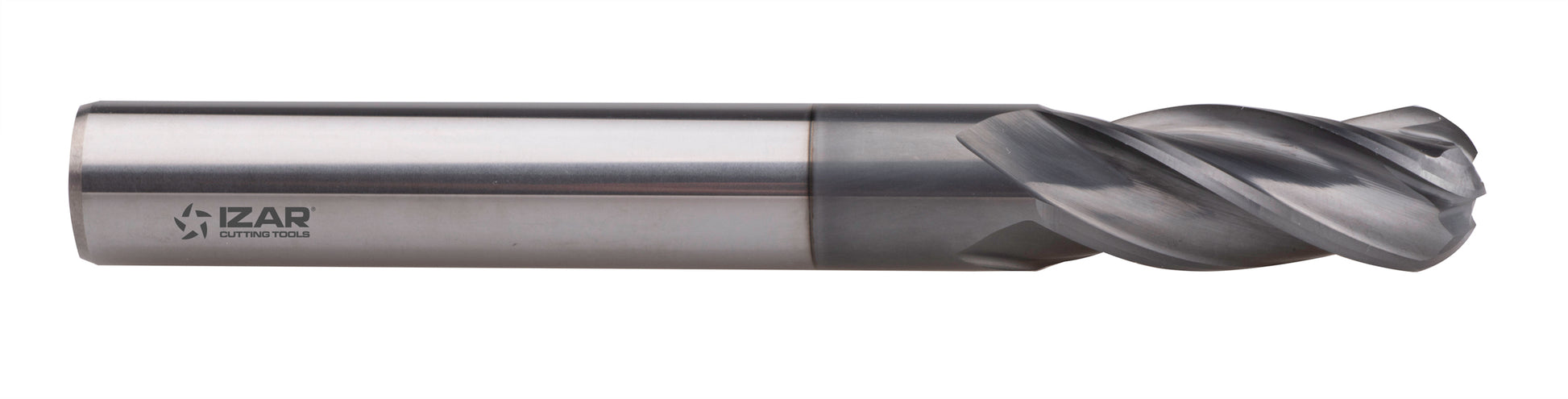

Izar 9407 — Solid Carbide Long Series Ball Nose Endmill (DIN 6528 N, AlCrO-PRO Coating)

The Izar 9407 Ball Nose Endmill is a long series solid carbide cutter designed for deep 3D machining, profiling, and finishing in mould, die, aerospace, and precision engineering applications. Built to DIN 6528 N standards and featuring advanced AlCrO-PRO coating, the 9407 delivers exceptional tool life, heat resistance, and surface quality even under demanding cutting conditions.

Geometry & Benefits

• Extended Length Design: Long series geometry provides extra reach, ideal for machining deep cavities and hard-to-access areas.

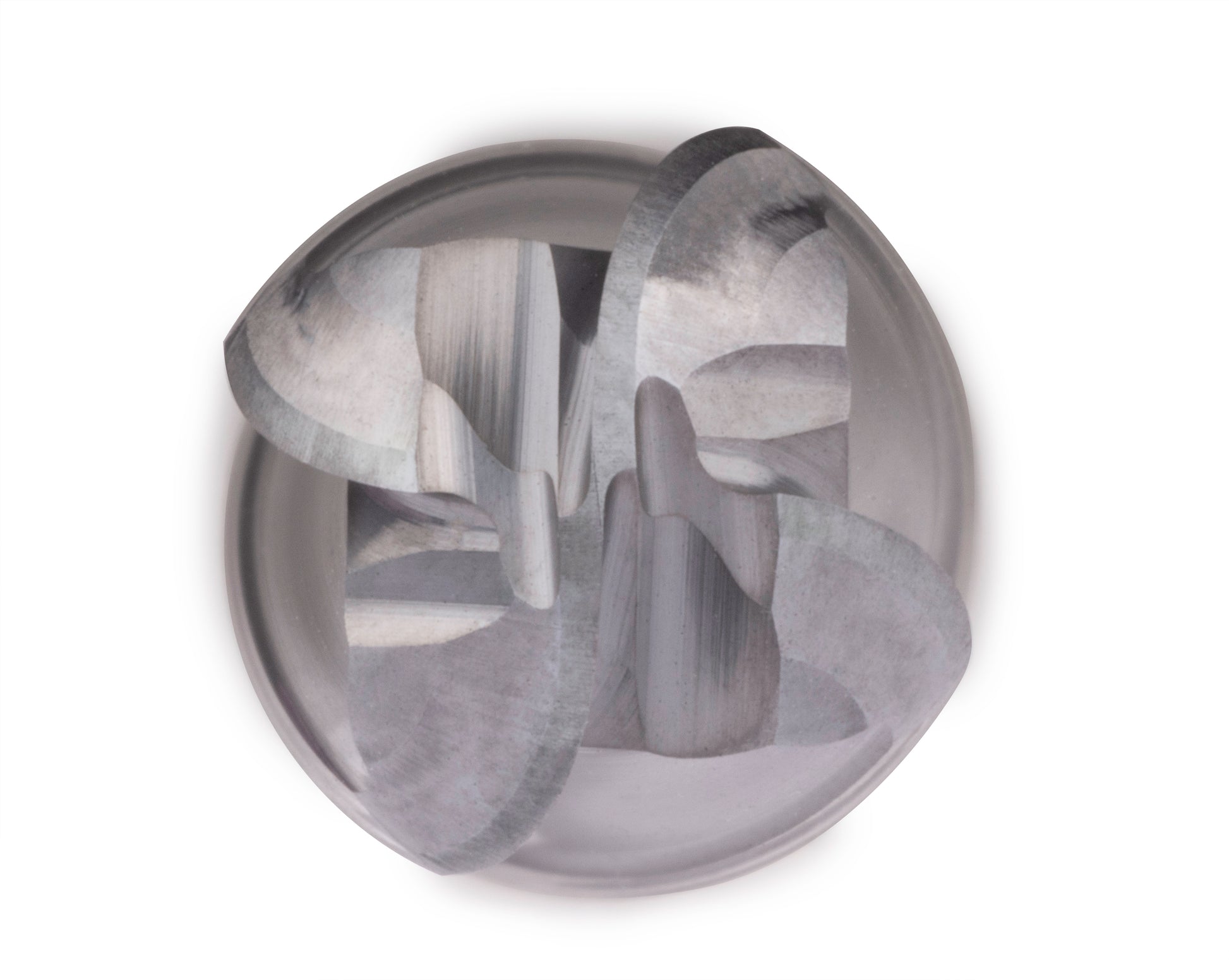

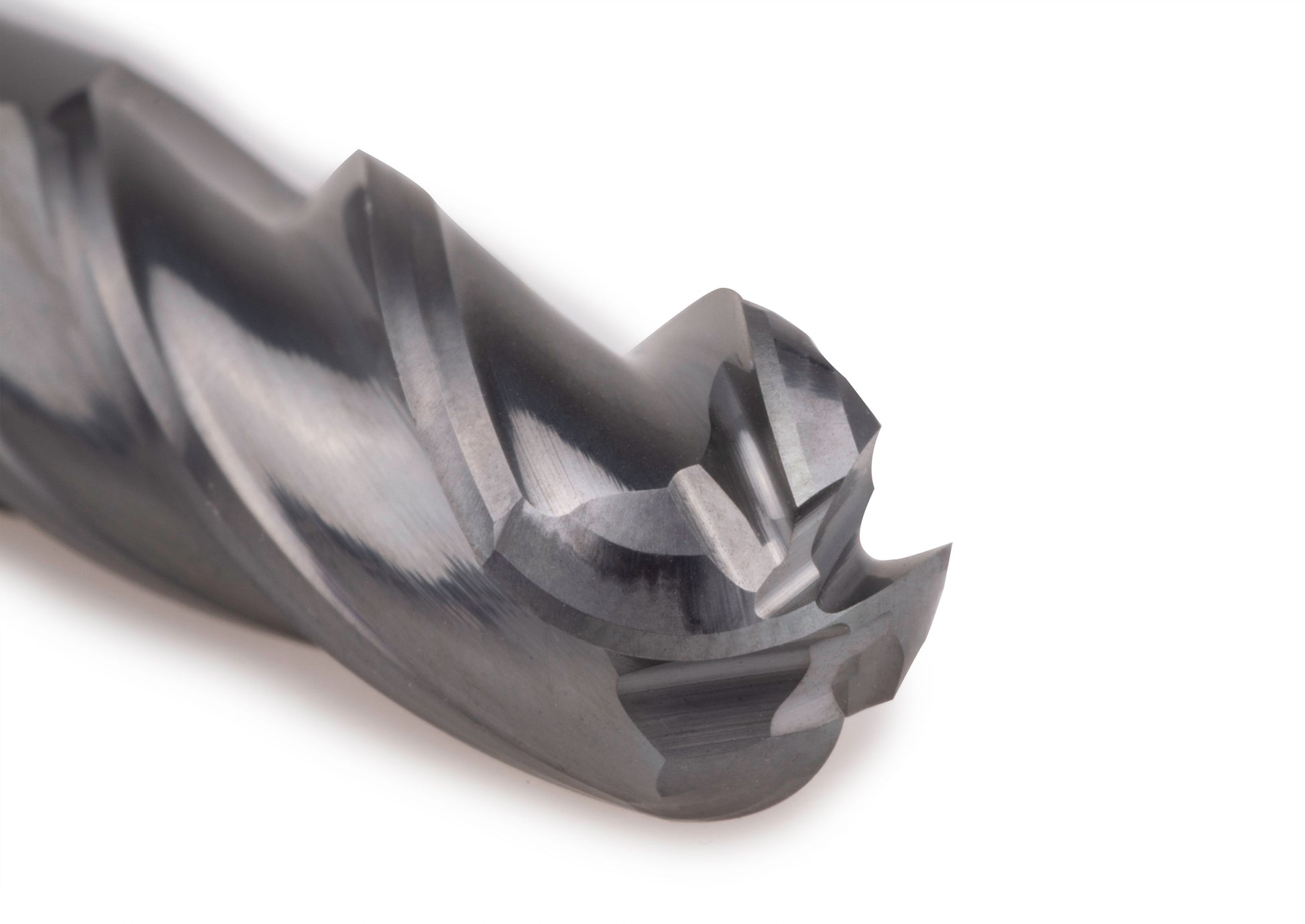

• Ball Nose Profile: Enables smooth 3D contouring, pocketing, and surface finishing with reduced step marks.

• Solid Micrograin Carbide: High strength and wear resistance for consistent performance in tough materials.

• AlCrO-PRO Coating: Advanced Aluminium-Chromium Oxide coating improves heat resistance, reduces friction, and supports high-speed cutting.

• Optimised Cutting Geometry: Enhances chip evacuation and reduces chatter, improving dimensional accuracy.

🔹 Typical Applications

• Deep Cavity Machining: Perfect for tool & die making, especially where long reach is required.

• 3D Contouring & Profiling: Smooth finishing of complex geometries in aerospace, automotive, and mould components.

• Finishing in Hardened Steels: Excellent performance in steels, stainless steels, titanium, and high-temperature alloys.

• Complex Pocketing: Allows accurate machining of deep slots and profiles without compromising surface finish.

3mm, Cutting length 10mm, OAL 75mm, 3mm Shank

4mm, Cutting length 12mm, OAL 75mm, 4mm Shank

5mm, Cutting length 16mm, OAL 75mm, 5mm Shank

6mm, Cutting length 20mm, OAL 100mm, 6mm Shank

8mm, Cutting length 25mm, OAL 100mm, 8mm Shank

10mm Cutting length 25mm, OAL 100mm, 10mm Shank

12mm Cutting length 30mm OAL 100mm, 12mm Shank
