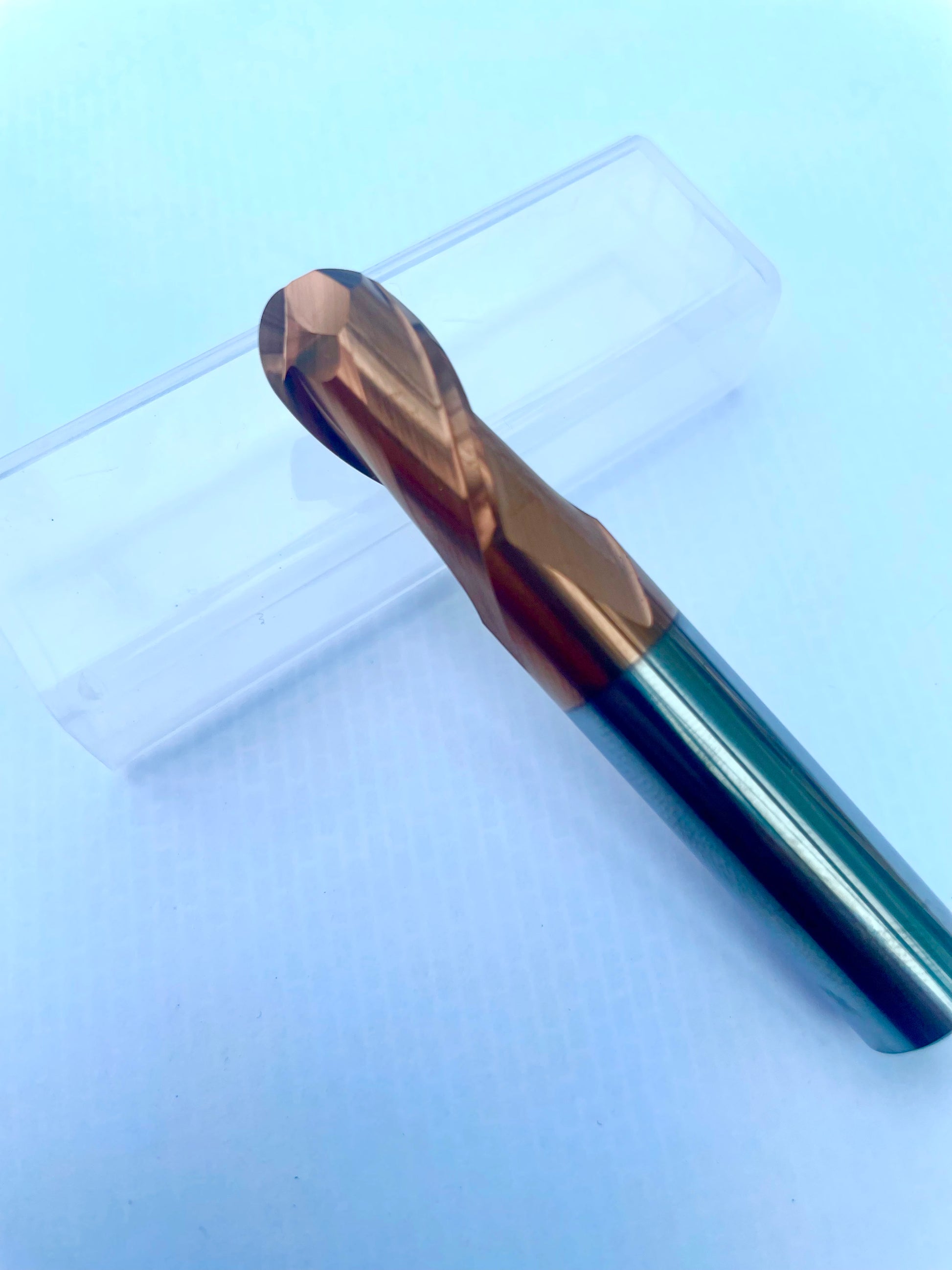

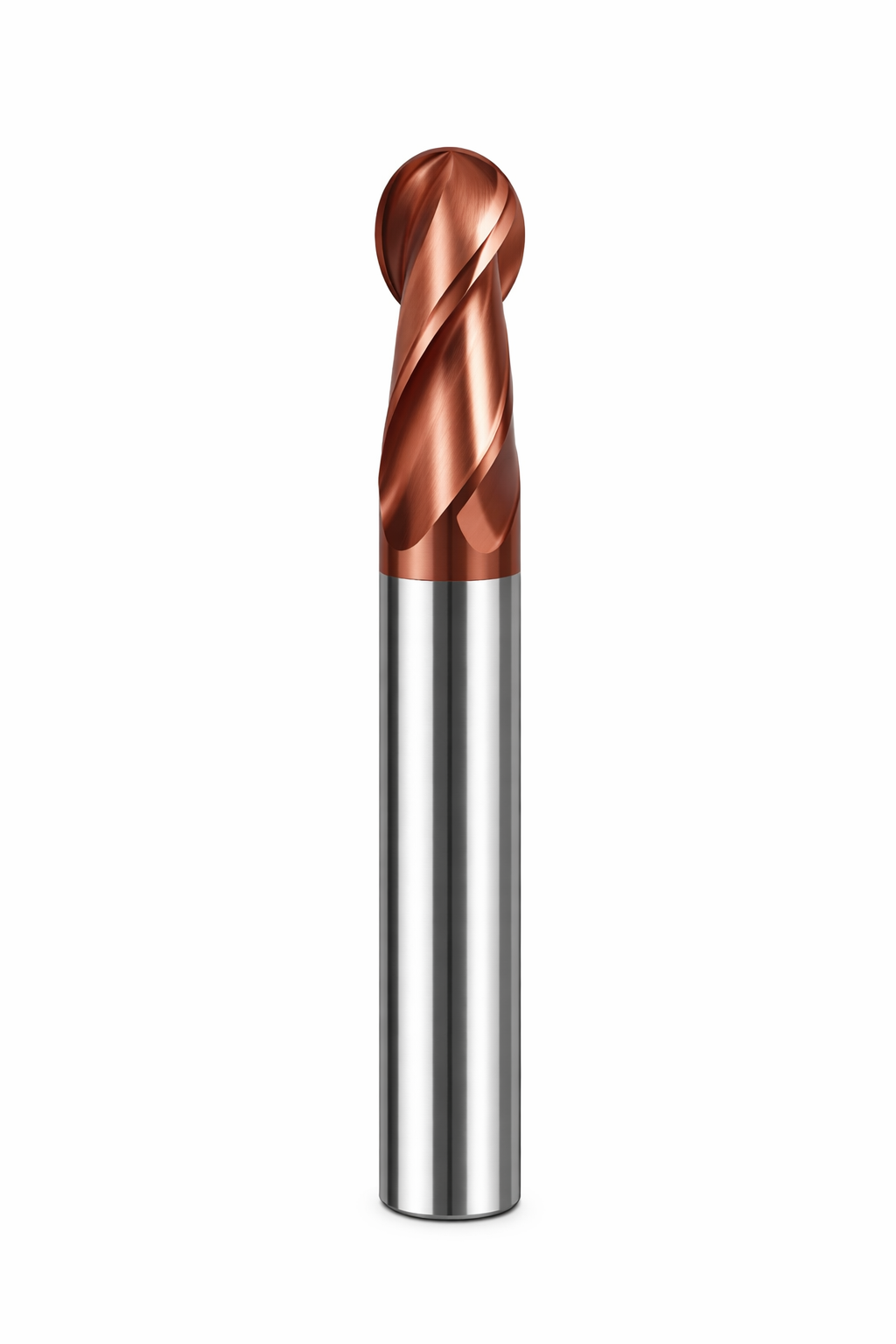

55 series- HRC55 Solid Carbide Ball Nose End Mill TiSiN Coated

The HN55 B2 is a premium solid carbide ball nose cutter, built for precision 3D contouring and finishing. Available in both 2-flute and 4-flute variants with a 35° helix angle, this tool delivers exceptional rigidity, chip removal, and surface finish quality. Its HRC55 carbide substrate ensures durability in tough machining environments, and the wide array of high-performance coating options allows you to tailor performance to your material and application needs.

Geometry & Benefits

• 2-Flute & 4-Flute Options: Choose broader flute space for aluminum and non-ferrous materials (2F), or enhanced rigidity and stability for steel and hard materials (4F).


• HRC55 Solid Carbide: Balances toughness and wear resistance—ideal for hardened steels, molds, and die applications.

• 35° Helix: Smooth cutting action with effective chip ejection, enabling high-speed operations with reduced vibration.


• Varied Coatings: Customizable options—such as AlTiN for heat resistance, TiSiN for abrasion control, DLC for low friction, etc.—maximize tool life across different materials.


• Full Size Range (Ø1–20 mm, 50–200 mm OL): Ensures flexibility for both fine-detailed work and long-reach cavity machining.

1mm - 2mm Cut length, 50mm OAL, 4mm Shank

2mm - 4mm Cut length, 50mm OAL, 4mm Shank

3mm - 6mm Cut length, 50mm OAL, 3mm Shank

4mm - 8mm Cut length, 50mm OAL, 4mm Shank

5mm - 10mm Cut length, 50mm OAL, 5mm Shank

6mm - 12mm Cut length, 50mm OAL, 6mm Shank

8mm - 16mm Cut length, 60mm OAL, 8mm Shank

10mm - 20mm Cut length, 75mm OAL, 10mm Shank

12mm - 24mm Cut length, 75mm OAL, 12mm Shank

16mm - 32mm Cut length, 100mm OAL, 16mm Shank

20mm - 40mm Cut length, 100mm OAL, 20mm Shank
