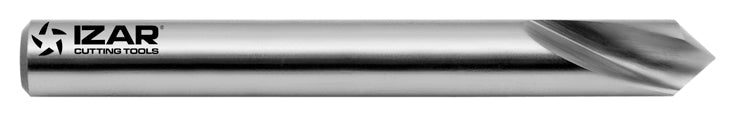

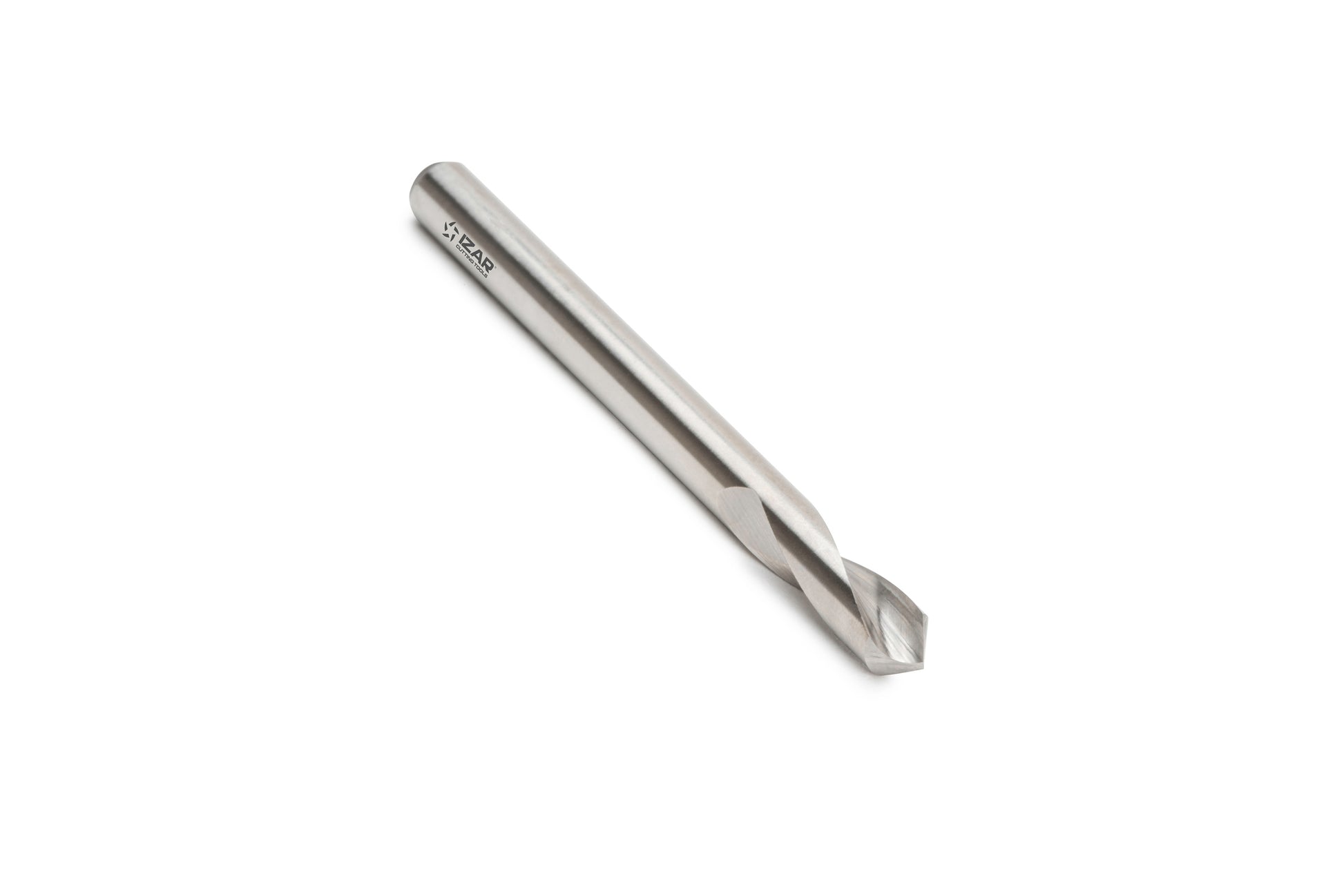

Izar 1301 — 90° HSSE Spot Drill (High-Speed Steel)

The Izar 1301 is a precision-engineered 90° spot drill made from tough HSSE material, designed to establish accurate centers before drilling. Available in various metric diameters, the 1301 ensures spot-on centering, prevents drill wander, and delivers consistent entry—ideal for both manual and CNC machining setups.

Geometry & Benefits

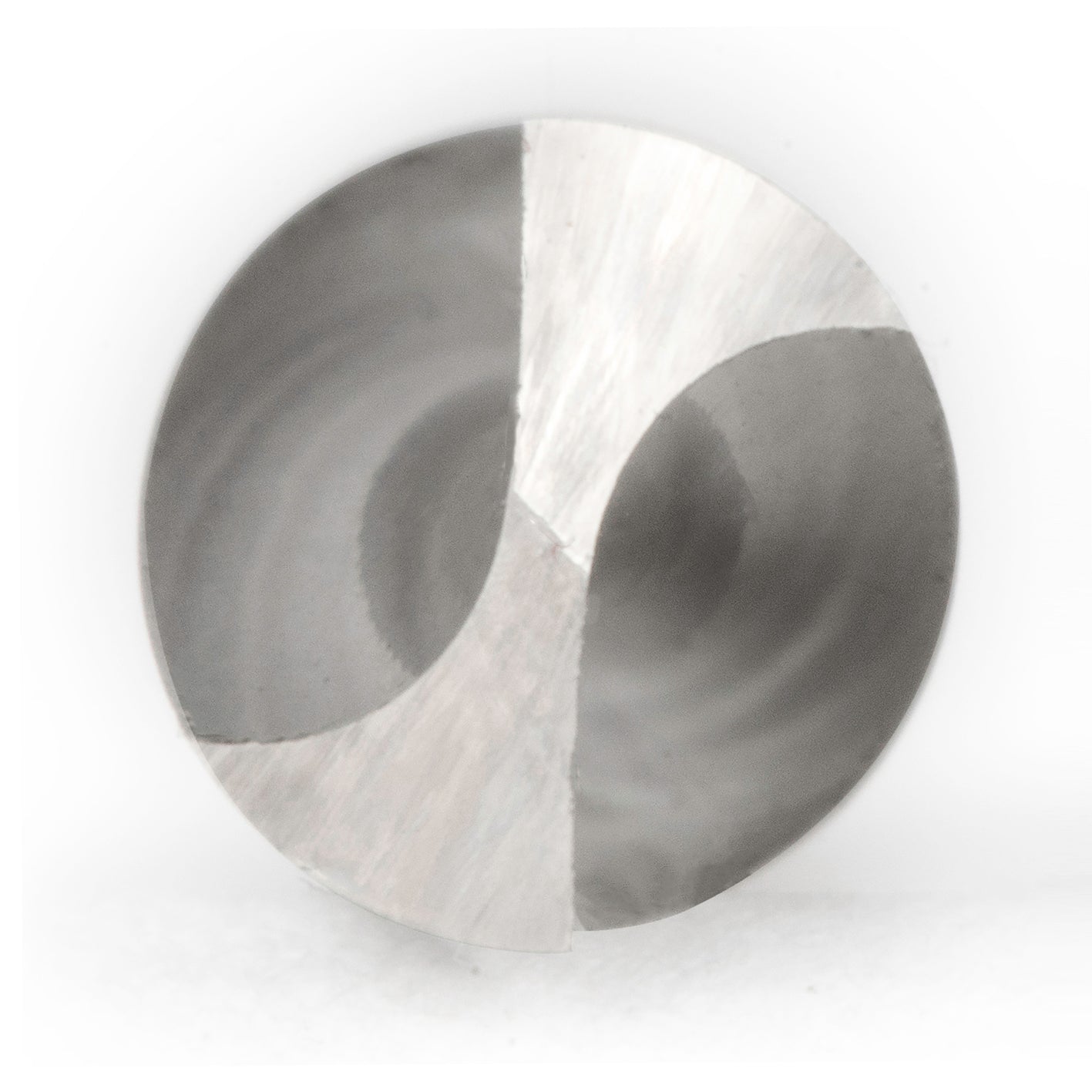

• 90° Point (Spot-Drill Geometry): This classic 90° angle provides a clean, sharp "spot" to guide drill bits precisely. It eliminates wandering and ensures level seating, especially on curved or uneven surfaces—a must for accurate follow-up hole-making.

• High-Speed Steel with Alloying (HSSE): Offers a great blend of toughness and wear resistance. Suitable across general-purpose materials—from alloyed steels and cast iron to non-ferrous metals—without risk of chipping or premature failure.

• Robust Single-Flute (Center-Drill Style) Design: The rigid one-piece geometry resists deflection, even when penetrating at angles or close to edges. Its strength and shape provide consistent starting control under load.

• Compact Form, Precision Start: Short, rigid form delivers accurate entry points even in tight setups—great for edge-offset drilling, angled fixtures, and ensures longer life for follow-up drills by reducing misalignment.

Typical Uses & Applications

• Drill-starting operations in milling or manual press setups—providing a precise “spot” before using longer drills.

• Centering for deep drilling: especially useful when accurate alignment is critical (e.g., deep holes, angled surfaces, tight tolerances).

• Edge-starting or angled parts, where drill edges might otherwise deflect or wander.

• Job shop or production environments where every hole should start accurately to reduce scrappage and rework.

4mm, Cutting length 12mm, 52mm OAL 4mm Shank

6mm, Cutting length 12mm, 60mm OAL,  6mm Shank

8mm, Cutting length 20mm, 60mm OAL, 8mm Shank

10mm, Cutting length 25mm, 79mm OAL, 10mm Shank

12mm, Cutting length 30mm, 102mm OAL, 12mm Shank
